Solid Timber Battens
Featurecraft’s decorative timber battens are a time-honoured way to beautify architectural environments. Timber battens – also referred to as wooden battens – are hard-wearing, impact-resistant components that can be pieced together to create complex timber batten ceiling systems, timber batten feature walls, and timber batten exterior soffits. These versatile components make it easy to divide environments into zones, draw attention to different areas to create dynamic visual flow, and generally elevate the aesthetics of any building.
When it comes to using a timber batten system, the options are limited only by imagination. Featurecraft offers many choices in timber species, stains, and profiles, ensuring that each timber batten system can be customised to the heart’s desire. Our interior timber battens are easy to install, enabling straight and curved timber batten feature walls, or supporting timber batten ceiling systems upon suspended ceilings. Batten spacing and batten sizes can be customised to a high degree, making it remarkably simple to create features for any environment. To complement our timber batten range, we also offer aluminium battens – these robust, non-corrosive products are ideal for projects that require a higher level of durability.
Solid Timber Battens Product Details
View all Profile Options
Custom sizes available
Square
Fluted
Bullnose
Custom on request
Species dependent
Preferred Length 2500mm – 3000mm
Pre-finished in Natural Clear-Coat Varnish or Custom (finishes include various stains, washes, and varnishes). All items are finished in our factory, located in Hawkes Bay, New Zealand
Acoustic polyester backing panel can be integrated using the ZPF trim
Interior Walls, Interior Ceilings, Exterior Soffits
Aluminum male and female components, trims (anodised/powder-coated)
5 Year
Group 3
Group 1s (NZ) achieved with factory applied intumescent coating
Acoustic backing panels can be 12mm (0.40 NRC) and 25mm (0.60 NRC) and are incorporated into the system for increased acoustic performance. To achieve up to 0.95 NRC an acoustic blanket will need to be used in conjunction with either system
Green Building Rating: VIEW DATA SHEET
FSC® Chain of Custody and PEFC Certification are available on request
To ensure the sustainability of our timber battens per NZ and international standards, we have achieved both FSC® Chain of Custody and PEFC™ certification. Our wooden battens are all finished in our Hawke’s Bay factory, and our expert craftspeople take a hands-on approach to each piece, giving our decorative timber battens a truly personal touch. Interior timber battens can be specially treated to improve their fire safety rating, making them a safer choice for timber ceiling battens per NZ standards.
There is no real debate about timber battens, NZ architecture has made its sentiments clear: this is one of the most powerful tools in a designer’s arsenal. Featurecraft offers absolute design flexibility to ensure that our products are perfectly suited for each project. For example, NZ architects using our timber ceiling battens have often requested custom shapes such as tapers and waves, demonstrating how the timber batten encourages creative ingenuity. Likewise, our timber batten feature walls can be crafted to almost any specification. With the expert care and guidance of our craftspeople, the solid timber batten is sure to satisfy any project’s needs.
Solid Timber Batten Profile Options
30x30mm
30x30mm
42x42mm
42x42mm
42x90mm
42x90mm
30x30mm
30x30mm
42x42mm
42x42mm
42x90mm
42x90mm
30x45mm
30x45mm
30x60mm
30x60mm
30x80mm
30x80mm
30x45mm
30x45mm
30x60mm
30x60mm
30x80mm
30x80mm
30x45mm
30x45mm
30x60mm
30x60mm
30x80mm
30x80mm
Diameter 16mm
Diameter 16mm
Diameter 18mm
Diameter 18mm
Diameter 23mm
Diameter 23mm
42x42mm
42x42mm
42x90mm
42x90mm
42x120mm
42x120mm
Solid Timber Battens Finishing Options
Drawings - Walls
Drawings - Ceilings
FAQs
Yes. Our solid timber battens are designed for feature walls and ceilings, with solutions for straight and curved installations, as well as suspended ceilings. Our team will guide you with spacing, profiles and integration so the system fits your space and works with services – our features are both beautiful and functional.
Solid timber battens can achieve a Group 1-S (NZ) rating with factory-applied intumescent coating, or a Group 3 (NZ) rating otherwise. Get in touch with us early in your design phase so we can fine-tune profiles, finishes, and documentation for your project.
Yes. We can integrate acoustic polyester (PET) backing behind timber battens (via our ZPF trim) to deliver both absorption and visual depth. PET backing is available in 12mm (0.40 NRC) or 25mm (0.60 NRC), and it comes in a wide colour range. You can also incorporate an acoustic blanket to achieve a 0.95 NRC performance. Tell us your acoustic requirements and we'll come up with the right system for you.
We offer dozens of profile options and sizes which you can view in our Batten Profile library. Our standard profiles include classic options like squares, rectangles, and bullnoses, as well as stylised options like tapers, flutes, and triangles. We also machine custom profiles on request and create feature lining layouts for incorporate services and enhance your aesthetics.
Our timber battens are fixed with a simple clip-on system and can be direct fixed to walls, ceilings, curved spaces, and suspended (Rondo) ceilings. We also offer additional services like access panels. Download our installation guides and drawings from the Resource Library for a quick and easy guide to our systems.

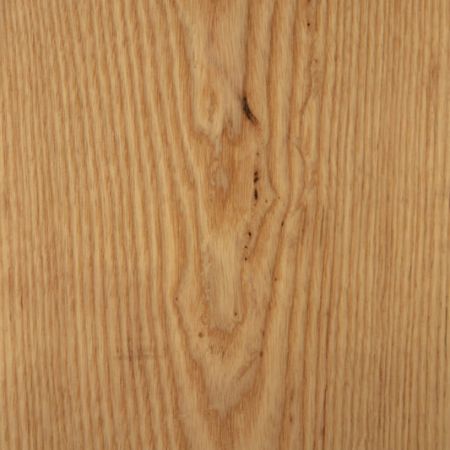

We offer over a dozen timber species with many options in tone and pattern. Our timber battens can be finished with a natural or custom varnish, allowing you to opt for our standard or custom stains. Order a complementary batten sample box to test colour and profile in situ; we offer free shipping across NZ and Australia.
