Name
01 - FHS3D15C
Hole Diameter
3mm
Centers
15mm
NRC Value
TBC
Coverage %
TBC
Acoustic Perforations
Featurecraft specialises in acoustic panels designed to elevate both aesthetic appeal and sound performance in any environment.
Discover our extensive range of perforation patterns, precisely engineered to enhance the acoustic efficiency of wall and ceiling acoustic panels. Available across all products in our panel collections, these customisable solutions are tailored to meet your unique design and sound requirements.
- Our designs, NRC ratings, and coverage metrics are based on a standard 2400x1200mm acoustic panel.
- Optimal NRC ratings reflect superior sound absorption, especially when combined with our Acoustic Blanket 20-100 backing.
- Custom acoustic panel solutions are also available - contact us to discuss bespoke designs that perfectly suit your project needs.
Perforation Panel Pattern: Holes - Straight
Name
02 - FHS5D15C
Hole Diameter
5mm
Centers
15mm
NRC Value
TBC
Coverage %
TBC
Name
03 - FHS7D30C
Hole Diameter
7mm
Centers
30mm
NRC Value
TBC
Coverage %
TBC
Name

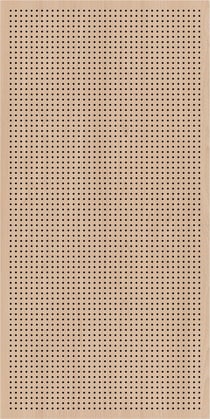

04 - FHS10D30C
Hole Diameter
10mm
Centers
30mm
NRC Value
0.8
Coverage %
2.66
Name
05 - FHS10D45C
Hole Diameter
10mm
Centers
45mm
NRC Value
0.55
Coverage %
2.78
Name

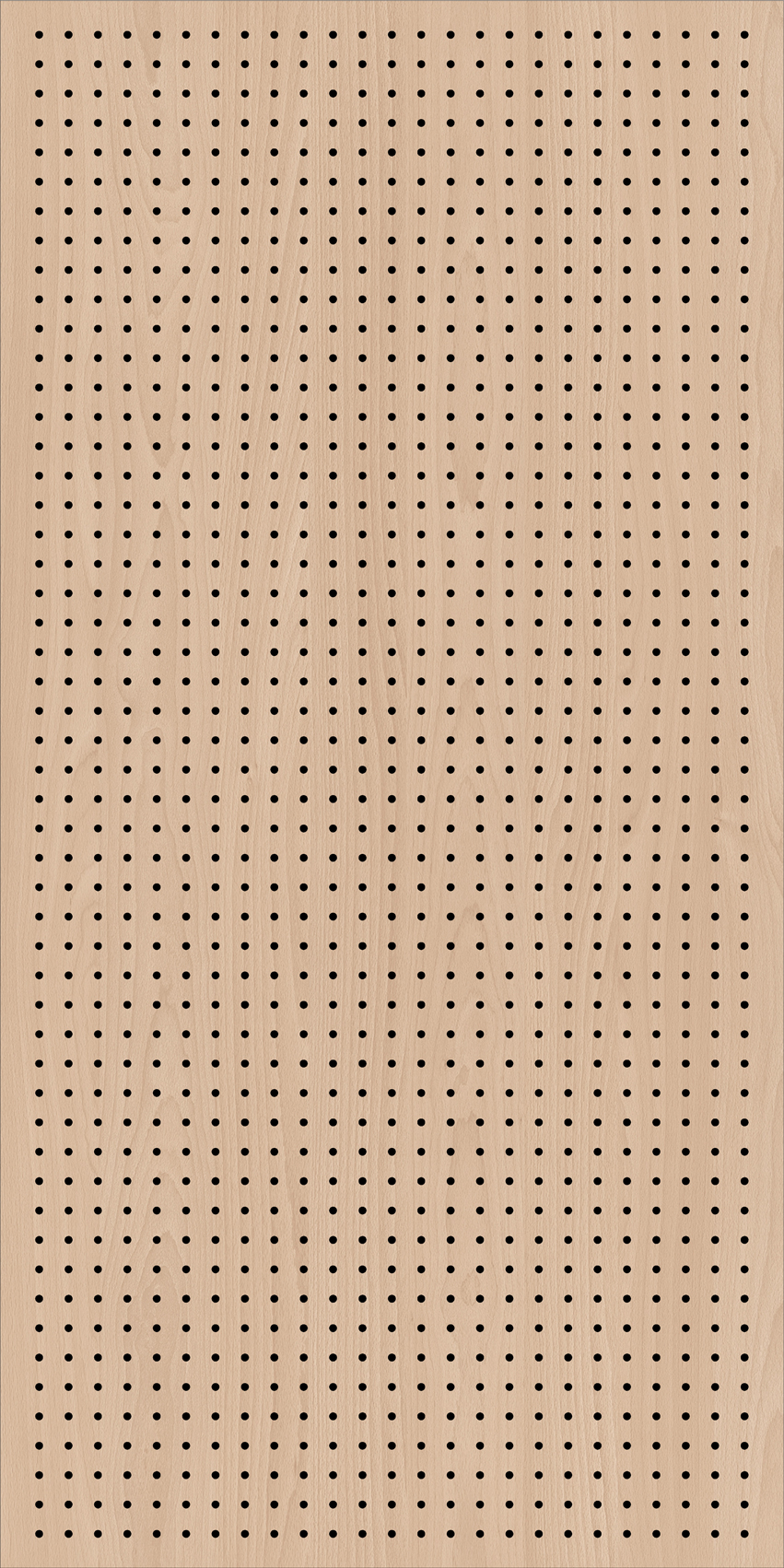

06 - FHS12D45C
Hole Diameter
12mm
Centers
45mm
NRC Value
0.65
Coverage %
2.73
Name

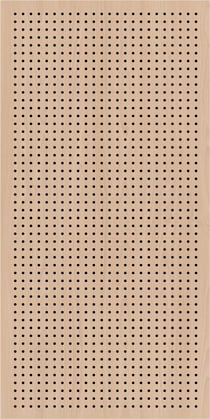

07 - FHS14D45C
Hole Diameter
14mm
Centers
45mm
NRC Value
0.75
Coverage %
2.68
Name
08 - FHS14D60C
Hole Diameter
14mm
Centers
60mm
NRC Value
TBC
Coverage %
TBC

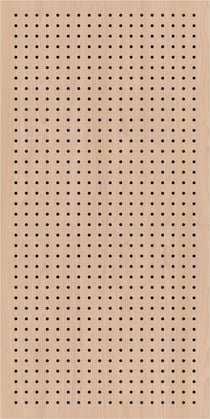

Name
09 - FHS16D60C
Hole Diameter
16mm
Centers
60mm
NRC Value
0.6
Coverage %
2.73
Name

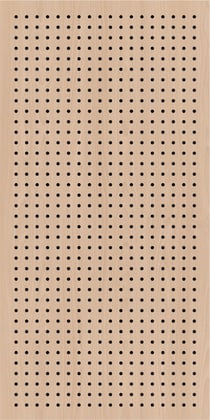

10 - FHS18D60C
Hole Diameter
18mm
Centers
60mm
NRC Value
0.7
Coverage %
2.69
Name
11 - FHS18D75C
Hole Diameter
18mm
Centers
75mm
NRC Value
0.55
Coverage %
2.75
Name

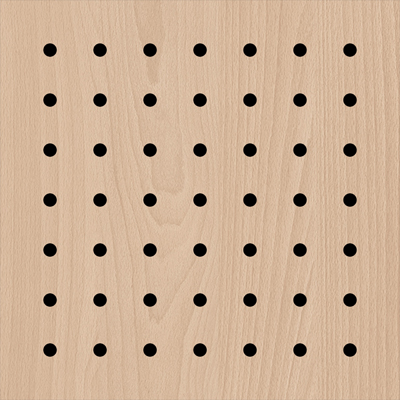

12 - FHS20D75C
Hole Diameter
20mm
Centers
75mm
NRC Value
0.6
Coverage %
2.72
Name

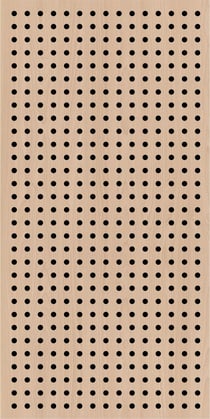

13 - FHS30D75C
Hole Diameter
30mm
Centers
75mm
NRC Value
0.8
Coverage %
2.52
Name

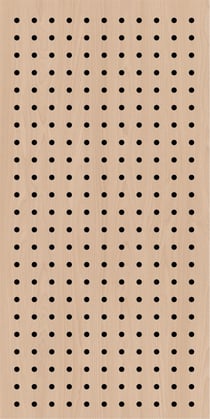

14 - FHS30D100C
Hole Diameter
30mm
Centers
100mm
NRC Value
0.6
Coverage %
2.68
Name

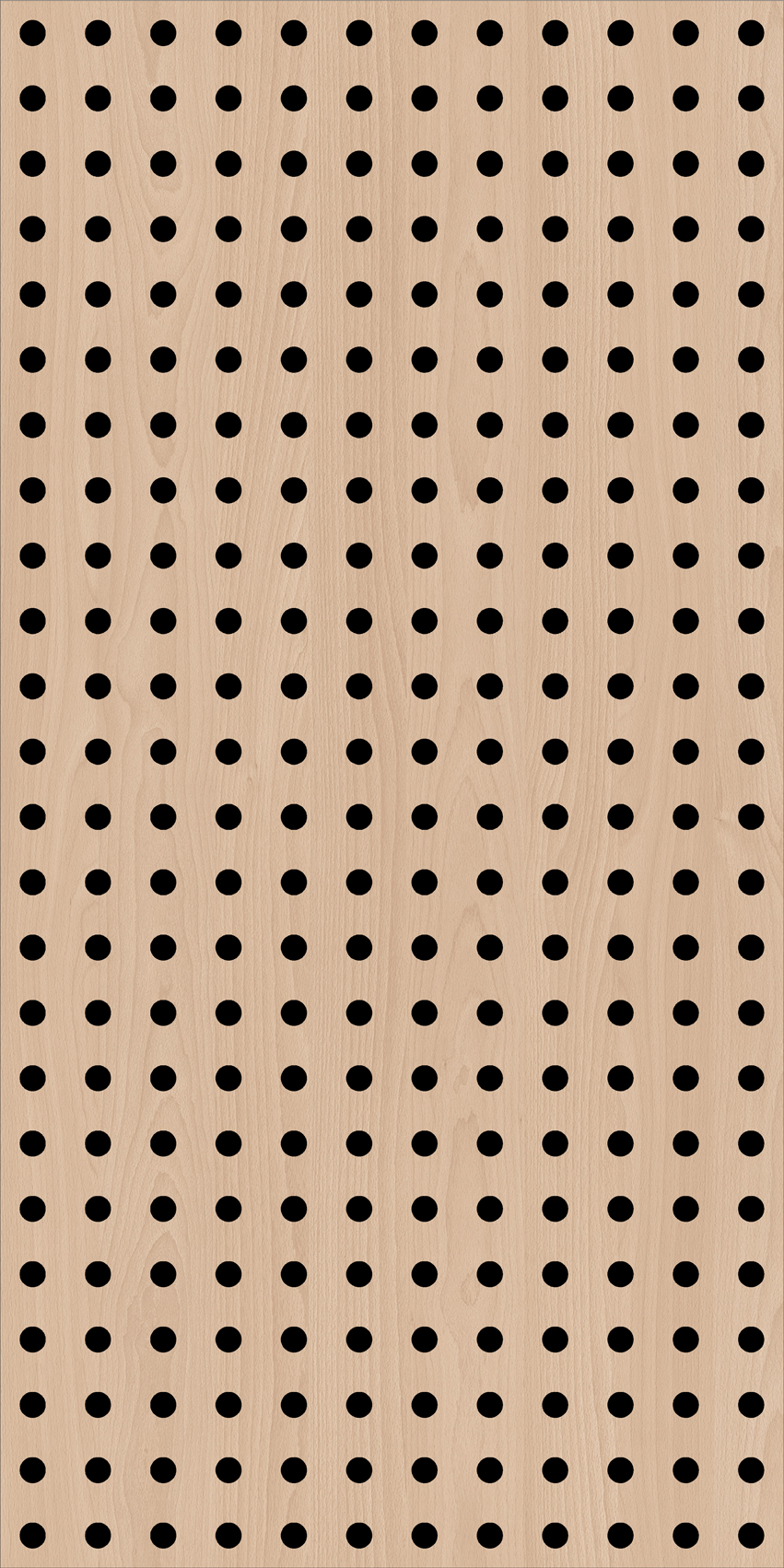

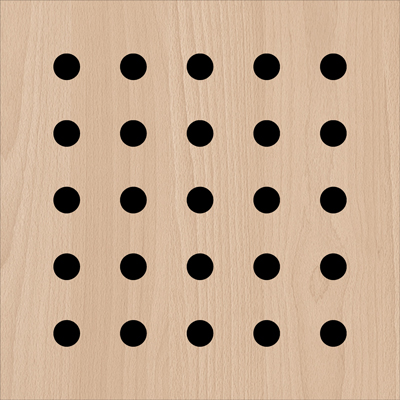

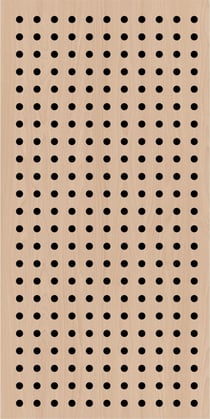

15 - FHS40D100C
Hole Diameter
40mm
Centers
100mm
NRC Value
0.75
Coverage %
2.52

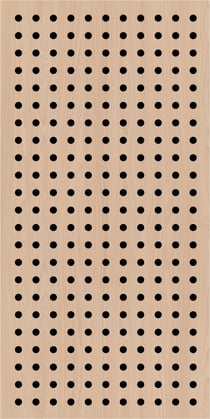

Name
16 - FHS50D100C
Hole Diameter
50mm
Centers
100mm
NRC Value
TBC
Coverage %
TBC
Name
17 - FHS50D150C
Hole Diameter
50mm
Centers
150mm
NRC Value
0.55
Coverage %
2.63
Name

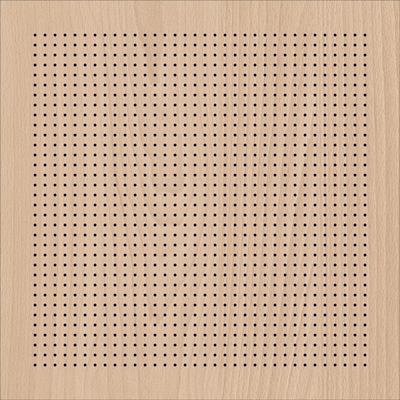

01 - FHS4D15C
Hole Diameter
4mm
Centers
15mm
NRC Value
0.65
Coverage %
4.97
Name

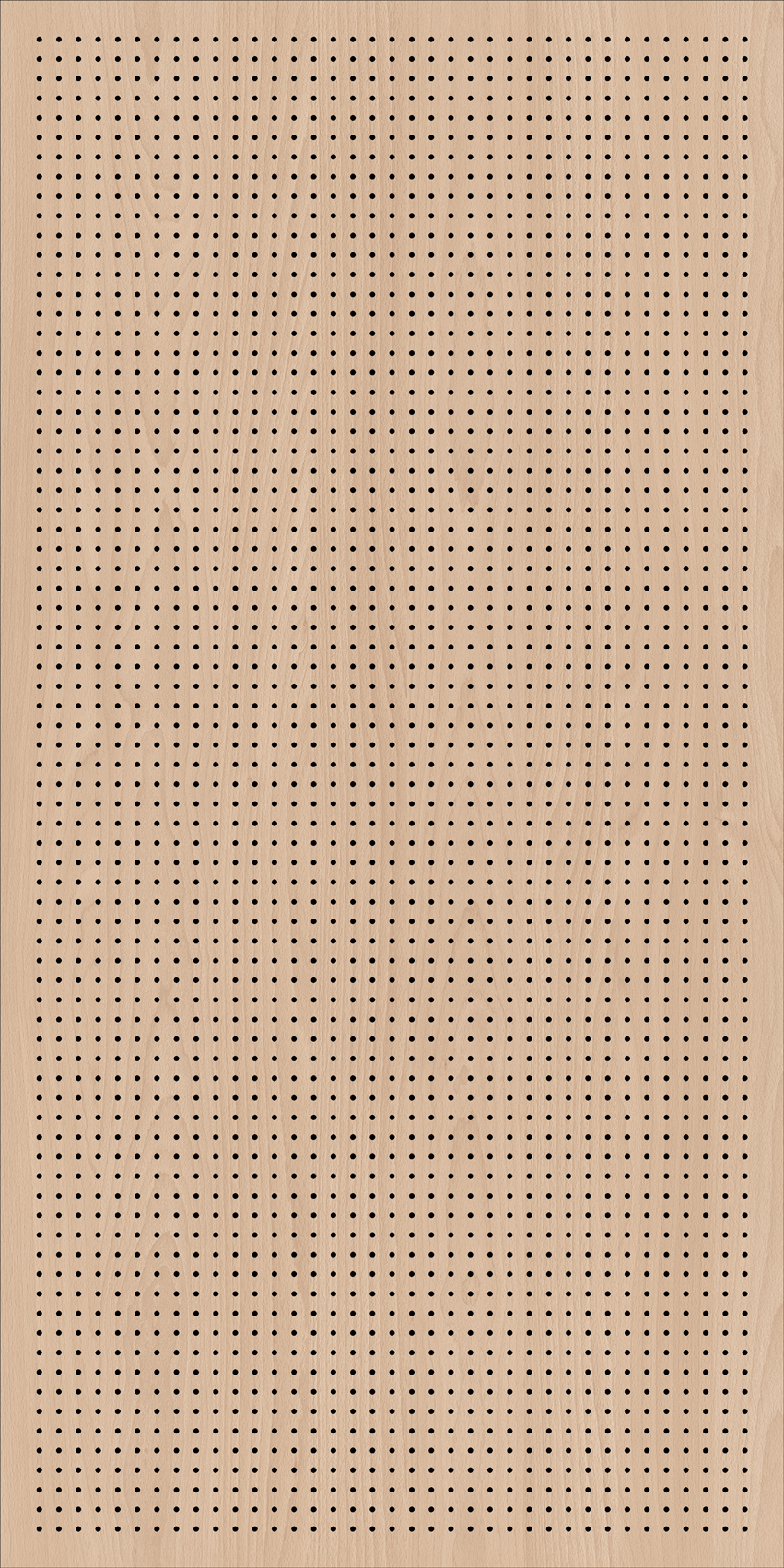

02 - FHS8D30C
Hole Diameter
8mm
Centers
30mm
NRC Value
0.65
Coverage %
4.97
Name
03 - FHS10D30C
Hole Diameter
10mm
Centers
30mm
NRC Value
0.8
Coverage %
7.77
Name

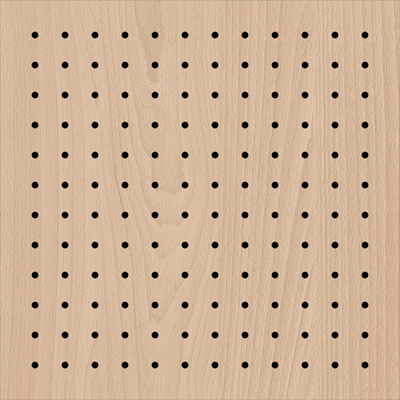

04 - FHS10D45C
Hole Diameter
10mm
Centers
45mm
NRC Value
0.55
Coverage %
3.54
Name

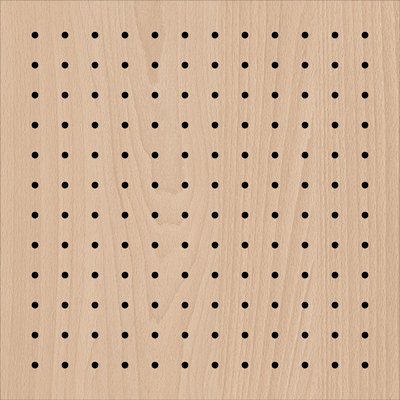

05 - FHS12D45C
Hole Diameter
12mm
Centers
45mm
NRC Value
0.65
Coverage %
5.1
Name

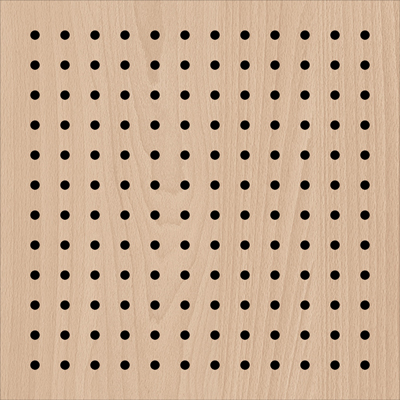

06 - FHS14D45C
Hole Diameter
14mm
Centers
45mm
NRC Value
0.75
Coverage %
6.95
Name

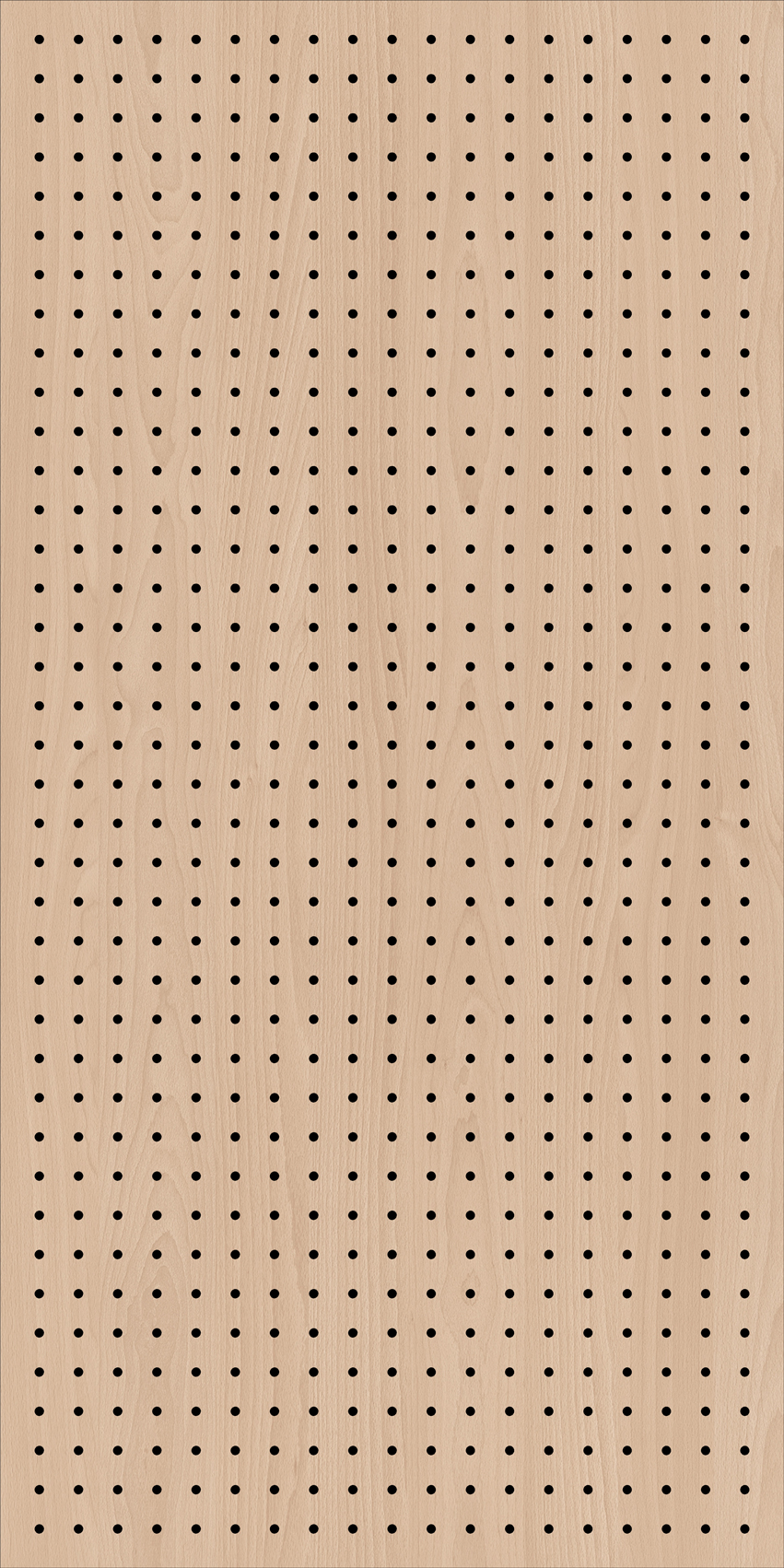

07 - FHS14D60C
Hole Diameter
14mm
Centers
60mm
NRC Value
0.55
Coverage %
3.96
Name
08 - FHS16D60C
Hole Diameter
16mm
Centers
60mm
NRC Value
0.6
Coverage %
5.17
Name
09 - FHS18D60C
Hole Diameter
18mm
Centers
60mm
NRC Value
0.7
Coverage %
6.55
Name

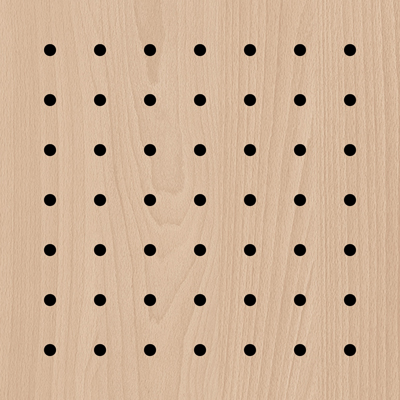

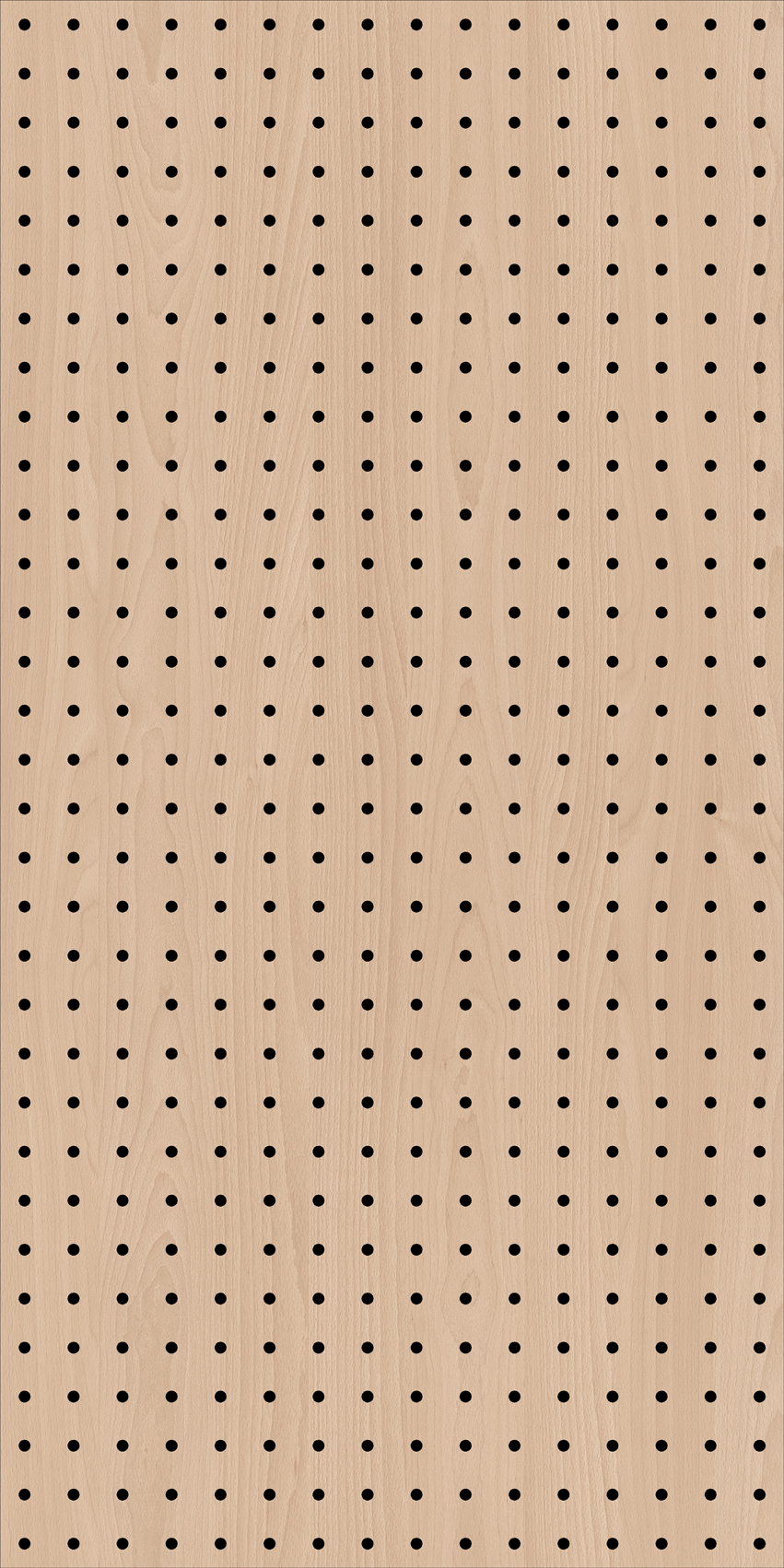

10 - FHS18D75C
Hole Diameter
18mm
Centers
75mm
NRC Value
0.55
Coverage %
4.52
Name
11 - FHS20D75C
Hole Diameter
20mm
Centers
75mm
NRC Value
0.6
Coverage %
5.58
Name

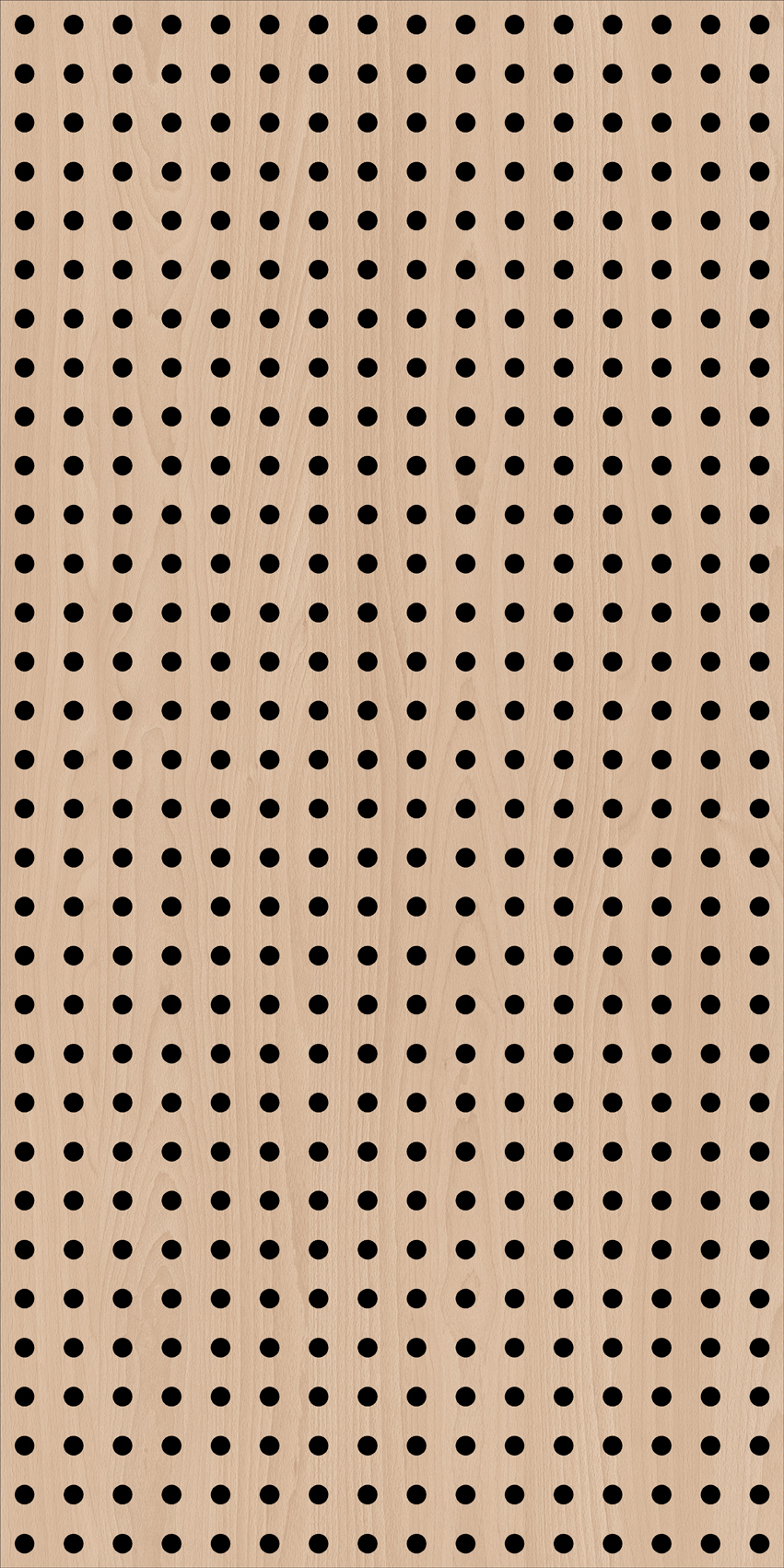

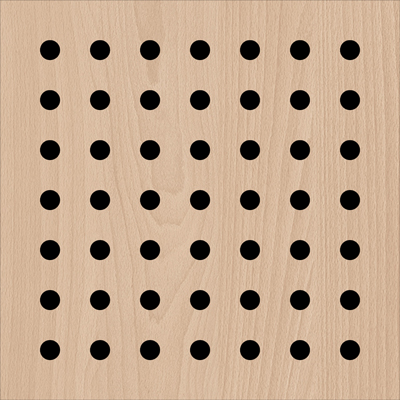

12 - FHS30D75C
Hole Diameter
30mm
Centers
75mm
NRC Value
0.6
Coverage %
7.07
Name
13 - FHS30D100C
Hole Diameter
30mm
Centers
100mm
NRC Value
0.6
Coverage %
7.07
Name
14 - FHS40D100C
Hole Diameter
40mm
Centers
100mm
NRC Value
0.75
Coverage %
12.57
Name

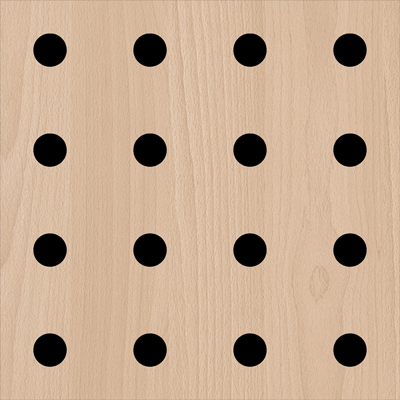

15 - FHS50D150C
Hole Diameter
50mm
Centers
150mm
NRC Value
0.55
Coverage %
8.73
Perforation Panel Pattern: Holes - Diagonal
Name
01 - FHD4D15C
Hole Diameter
4mm
Centers
15mm
NRC Value
0.8
Coverage %
5.34
Name

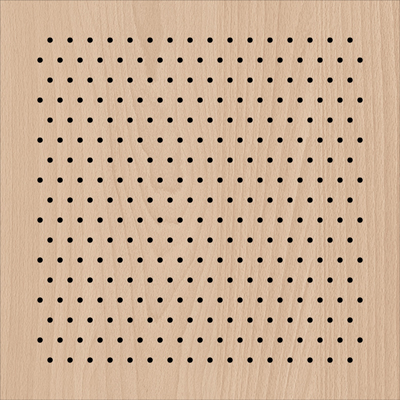

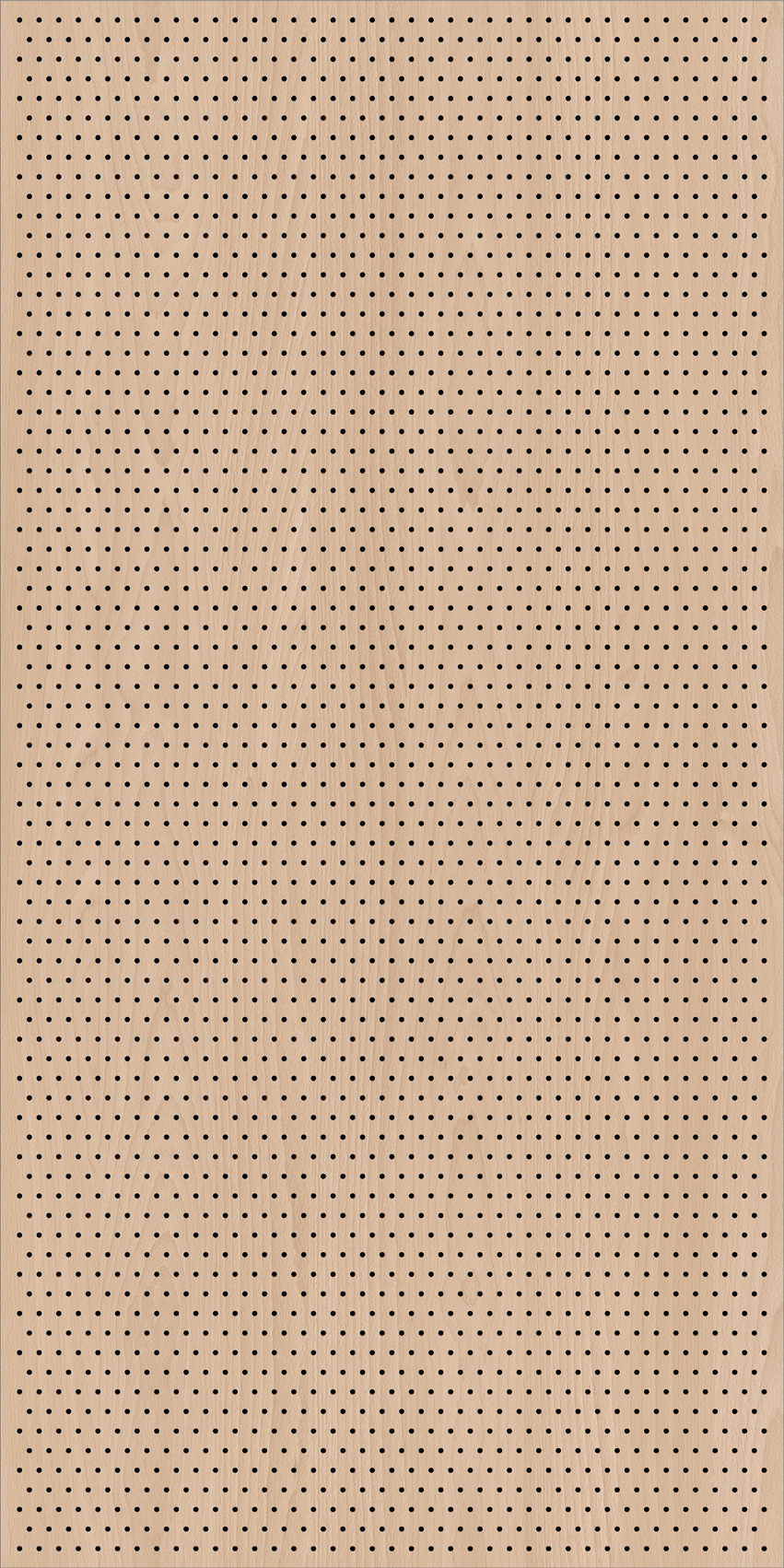

02 - FHD8D30C
Hole Diameter
8mm
Centers
30mm
NRC Value
0.85
Coverage %
5.31
Name

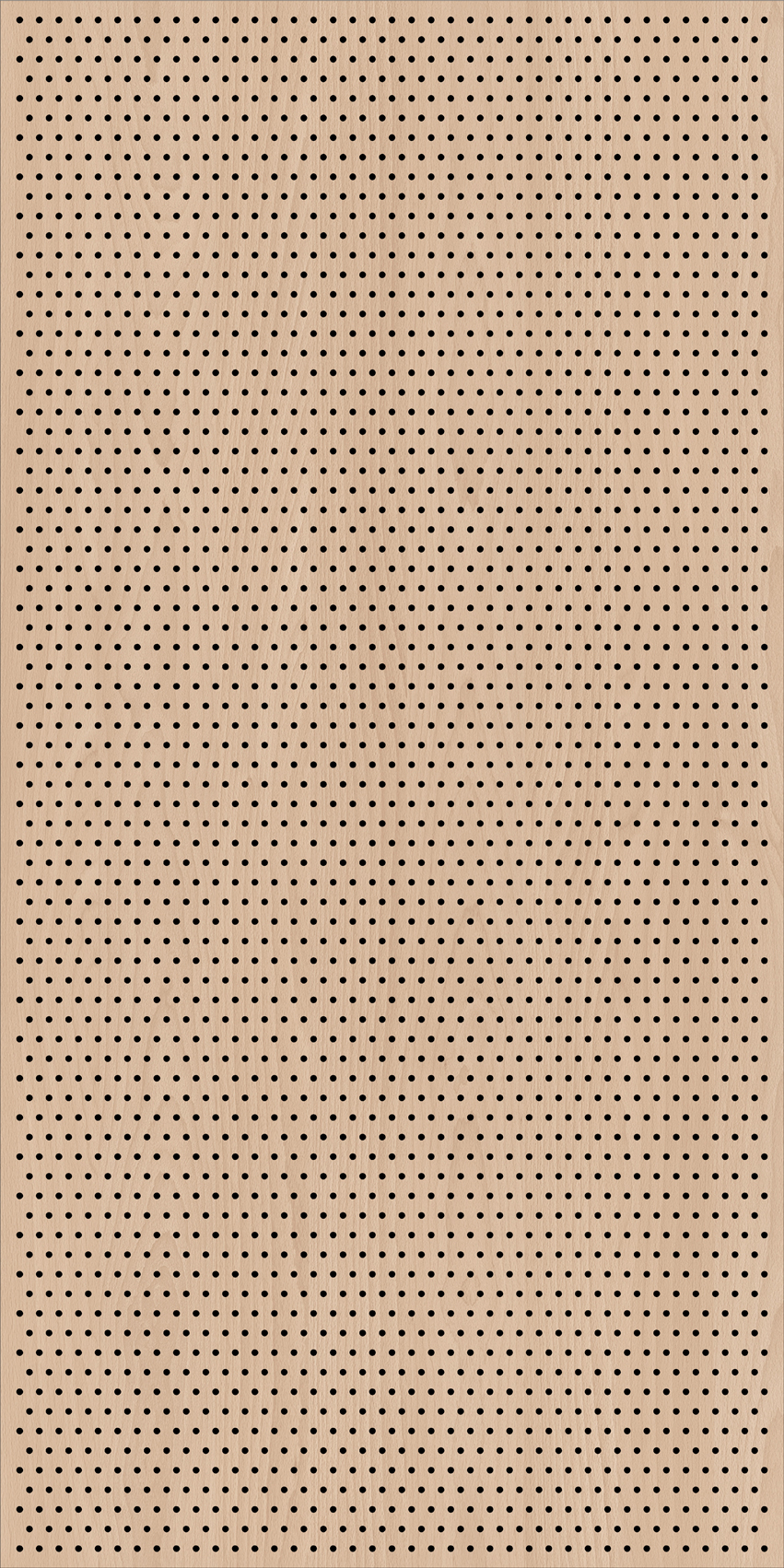

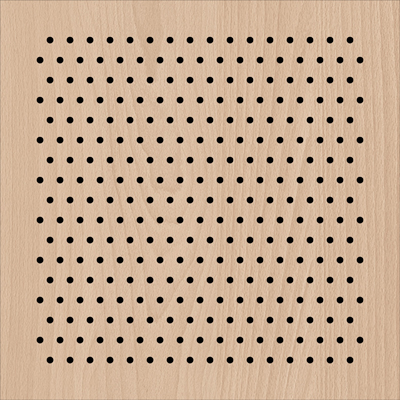

03 - FHD10D30C
Hole Diameter
10mm
Centers
30mm
NRC Value
0.9
Coverage %
8.3
Name

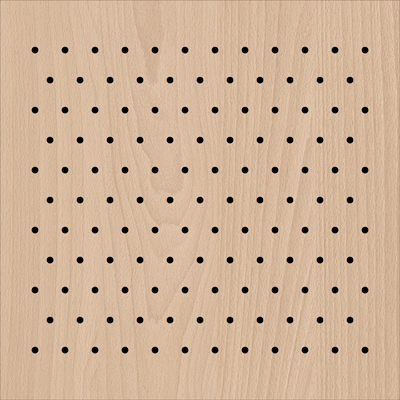

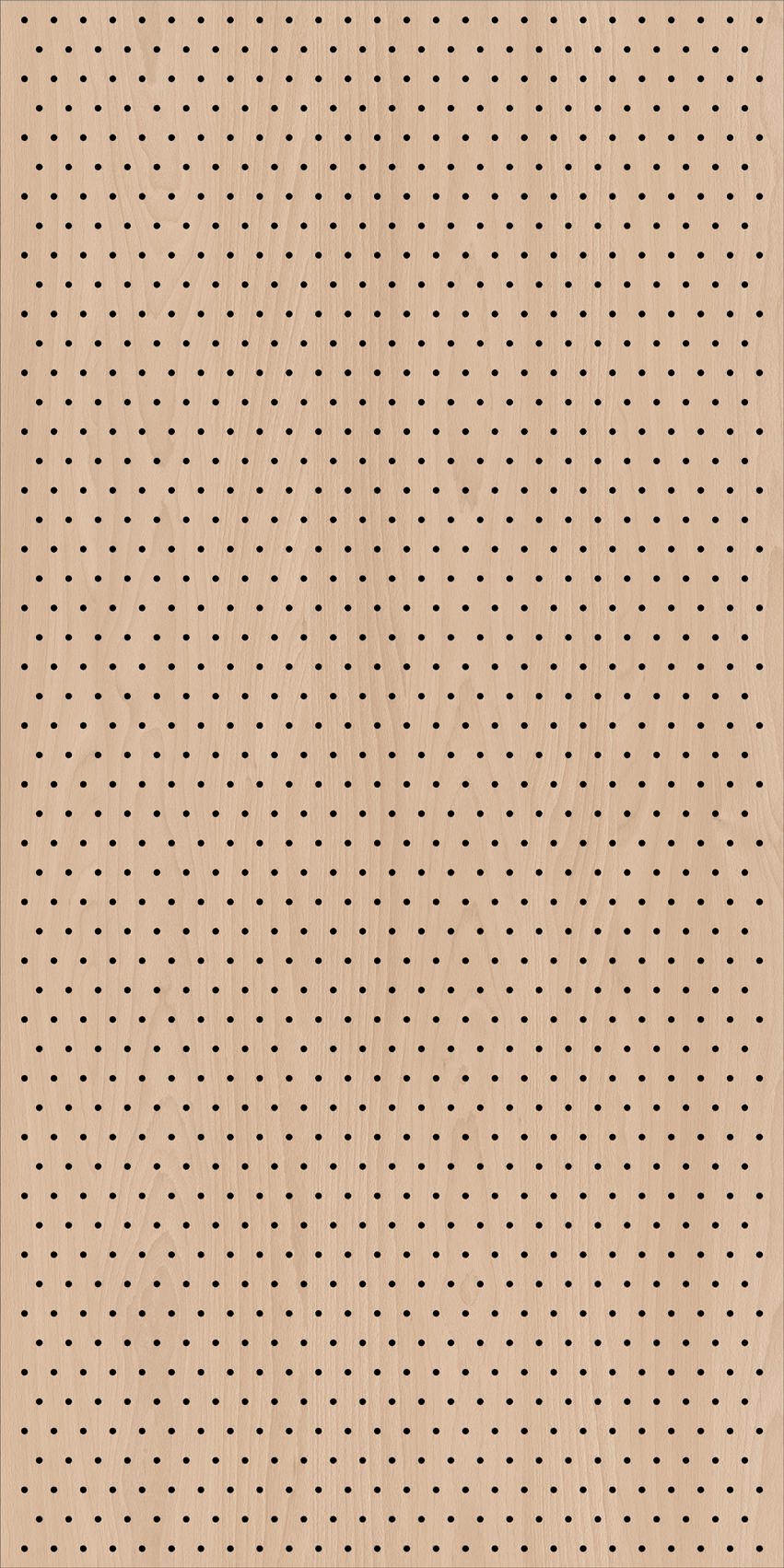

04 - FHD10D45C
Hole Diameter
10mm
Centers
45mm
NRC Value
0.75
Coverage %
3.69
Name
05 - FHD12D45C
Hole Diameter
12mm
Centers
45mm
NRC Value
0.85
Coverage %
5.31
Name

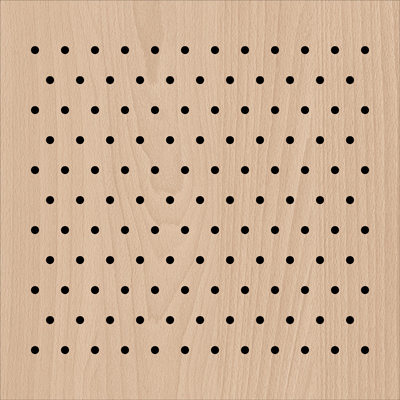

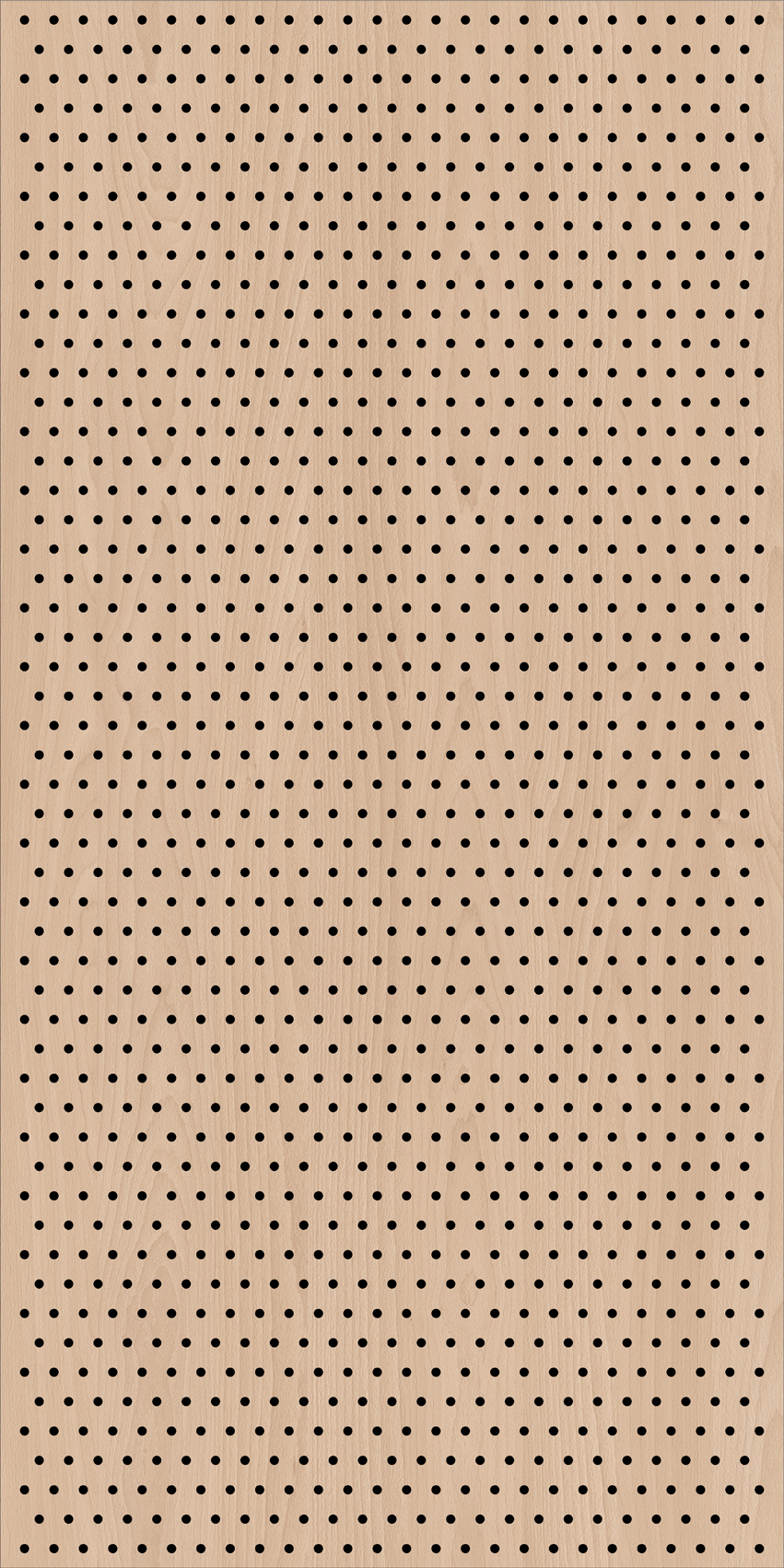

06 - FHD14D45C
Hole Diameter
14mm
Centers
45mm
NRC Value
0.9
Coverage %
7.23
Name
01 - FHD3D15C
Hole Diameter
3mm
Centers
15mm
NRC Value
TBC
Coverage %
TBC
Name
02 - FHD5D15C
Hole Diameter
5mm
Centers
15mm
NRC Value
TBC
Coverage %
TBC
Name

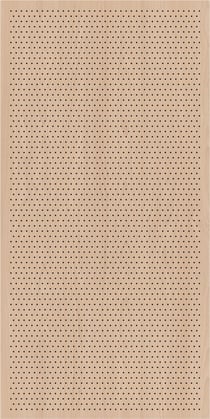

03 - FHD7D30C
Hole Diameter
7mm
Centers
30mm
NRC Value
TBC
Coverage %
TBC
Name

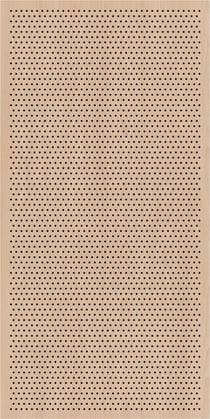

04 - FHD10D30C
Hole Diameter
10mm
Centers
30mm
NRC Value
0.9
Coverage %
2.64
Name
05 - FHD10D45C
Hole Diameter
10mm
Centers
45mm
NRC Value
0.75
Coverage %
2.77
Name

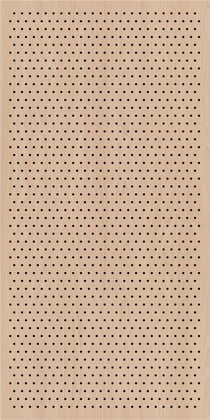

06 - FHD12D45C
Hole Diameter
12mm
Centers
45mm
NRC Value
0.85
Coverage %
2.73

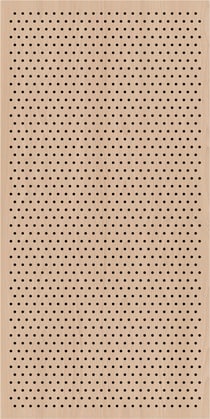

Name
07 - FHD14D45C
Hole Diameter
14mm
Centers
45mm
NRC Value
0.9
Coverage %
2.67
Name

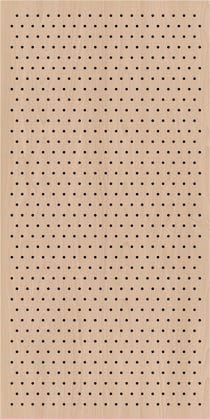

08 - FHD14D60C
Hole Diameter
14mm
Centers
60mm
NRC Value
0.75
Coverage %
2.76
Name

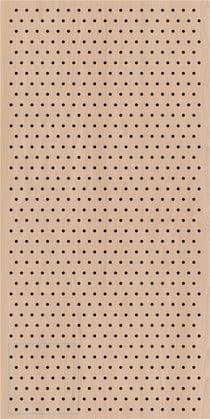

09 - FHD16D60C
Hole Diameter
16mm
Centers
60mm
NRC Value
0.85
Coverage %
2.72
Name
10 - FHD18D60C
Hole Diameter
18mm
Centers
60mm
NRC Value
0.85
Coverage %
2.68
Name

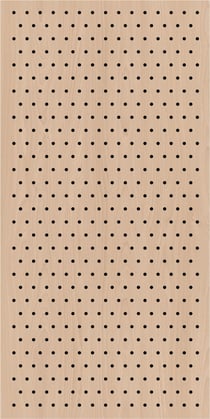

11 - FHD18D75C
Hole Diameter
18mm
Centers
75mm
NRC Value
0.75
Coverage %
2.75
Name
12 - FHD20D75C
Hole Diameter
20mm
Centers
75mm
NRC Value
0.8
Coverage %
2.72
Name
13 - FHD30D75C
Hole Diameter
30mm
Centers
75mm
NRC Value
0.95
Coverage %
2.53
Name
14 - FHD30D100C
Hole Diameter
30mm
Centers
100mm
NRC Value
0.8
Coverage %
2.68
Name

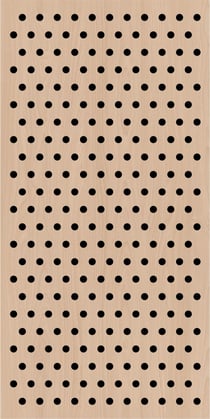

15 - FHD40D100C
Hole Diameter
40mm
Centers
100mm
NRC Value
0.95
Coverage %
2.53
Name

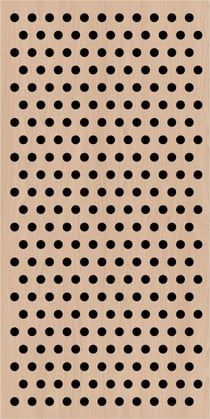

16 - FHD50D100C
Hole Diameter
50mm
Centers
100mm
NRC Value
TBC
Coverage %
TBC

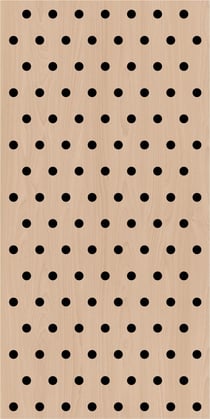

Name
17 - FHD50D150C
Hole Diameter
50mm
Centers
150mm
NRC Value
0.8
Coverage %
2.64
Perforation Panel Pattern: Slots
Name

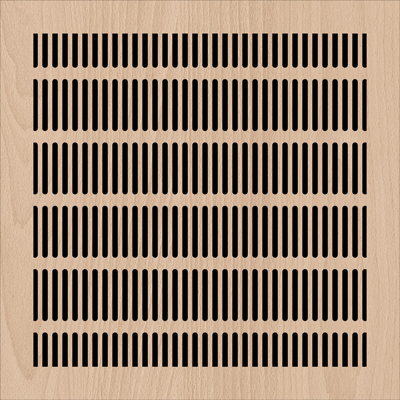

01 - FS8X70-15C25G
Slots (W x H)
8x70mm
Centers
15mm
Row Gap
95mm
NRC Value
0.9
Coverage %
41.32
Name

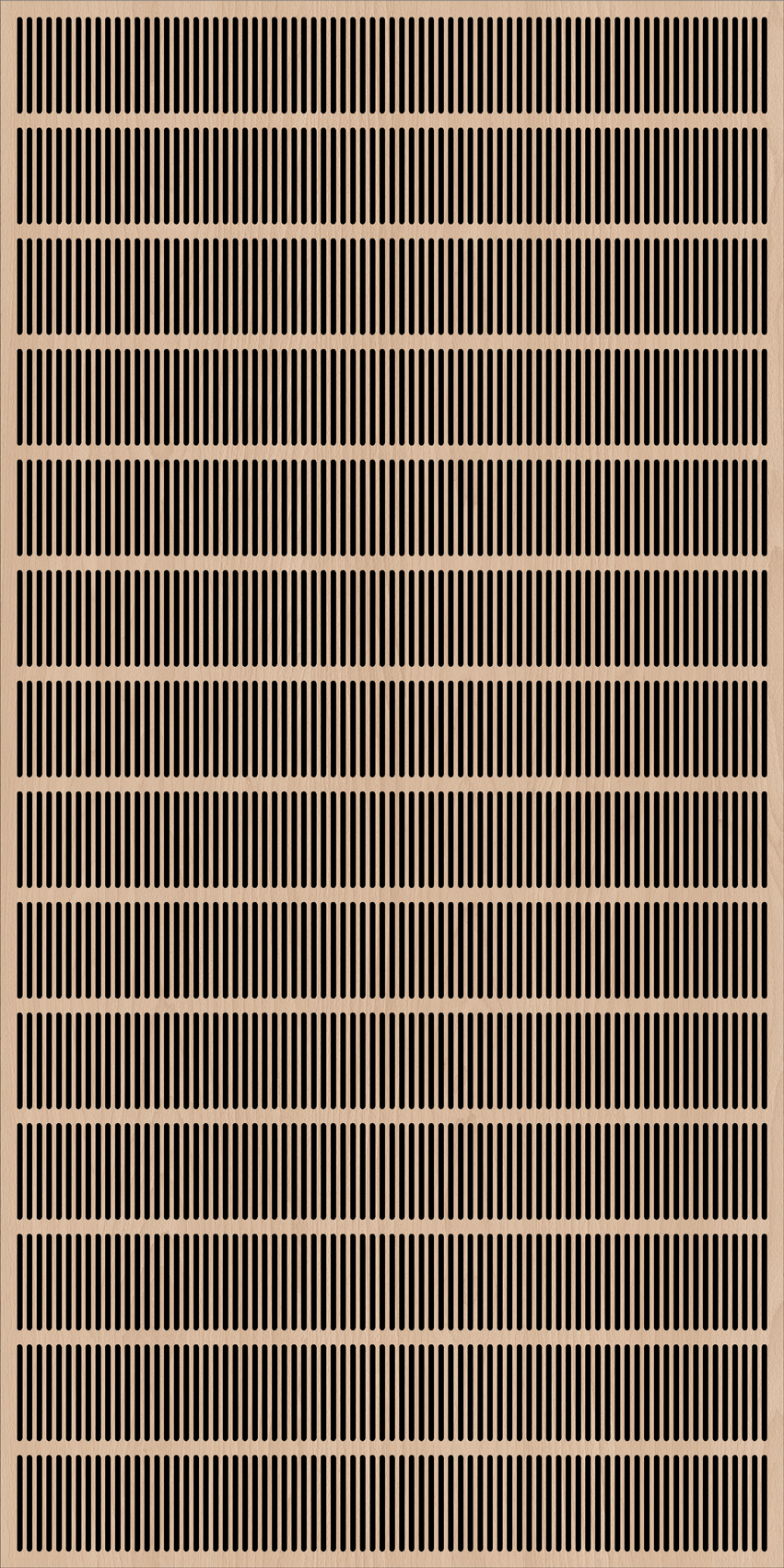

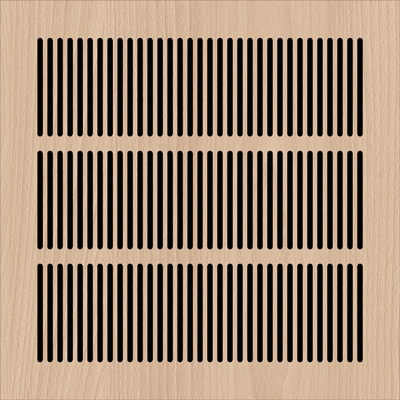

02 - FS8X140-15C25G
Slots (W x H)
8x140mm
Centers
15mm
Row Gap
165mm
NRC Value
0.9
Coverage %
43.8

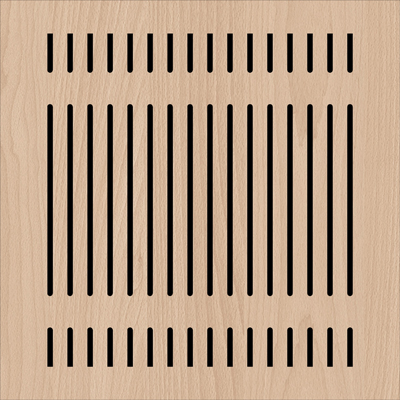

Name

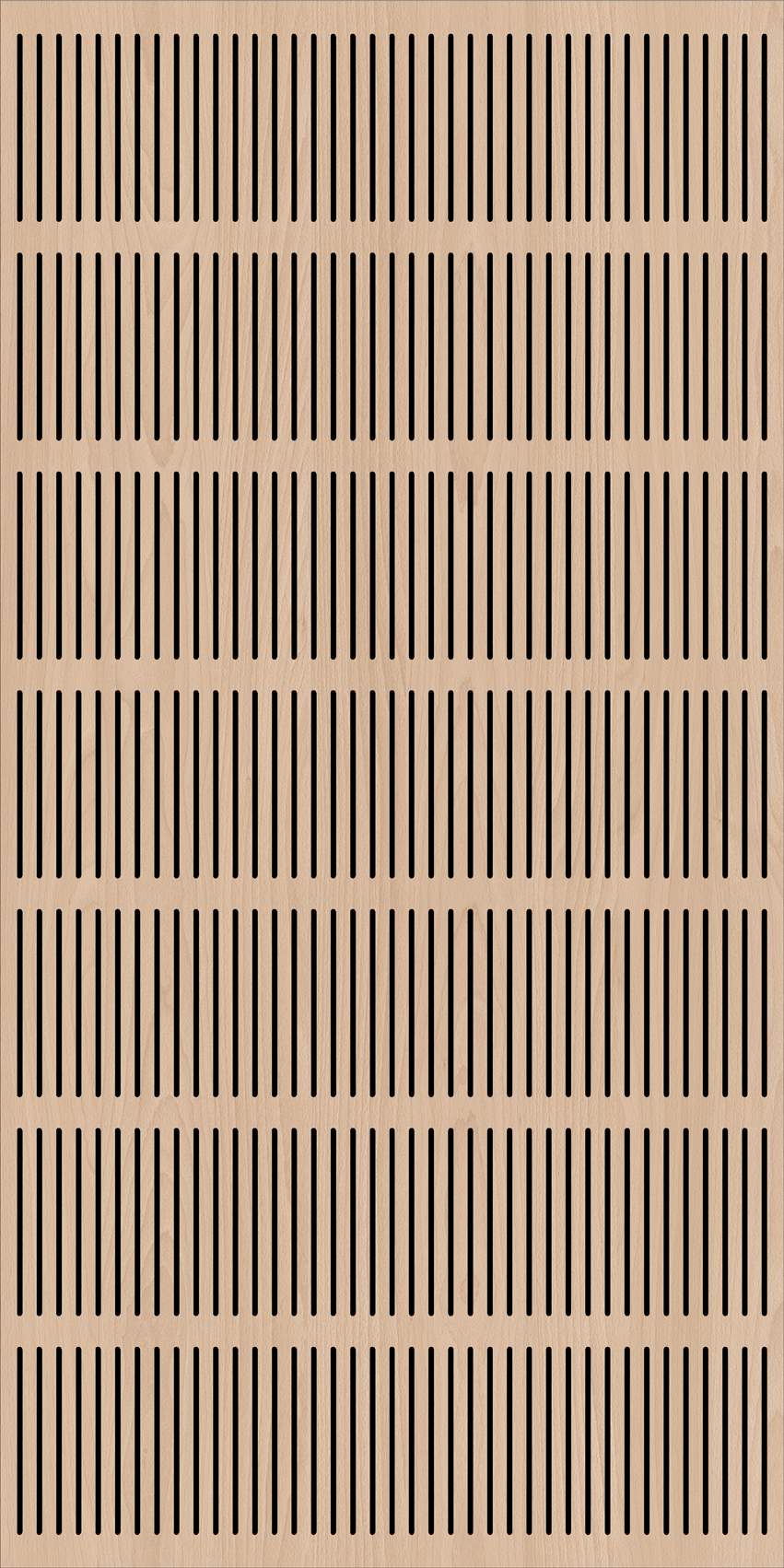

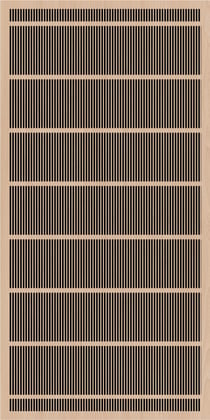

03 - FS8X280/30C60G
Slots (W x H)
8x280mm
Centers
30mm
Row Gap
340mm
NRC Value
0.9
Coverage %
21.71
Name

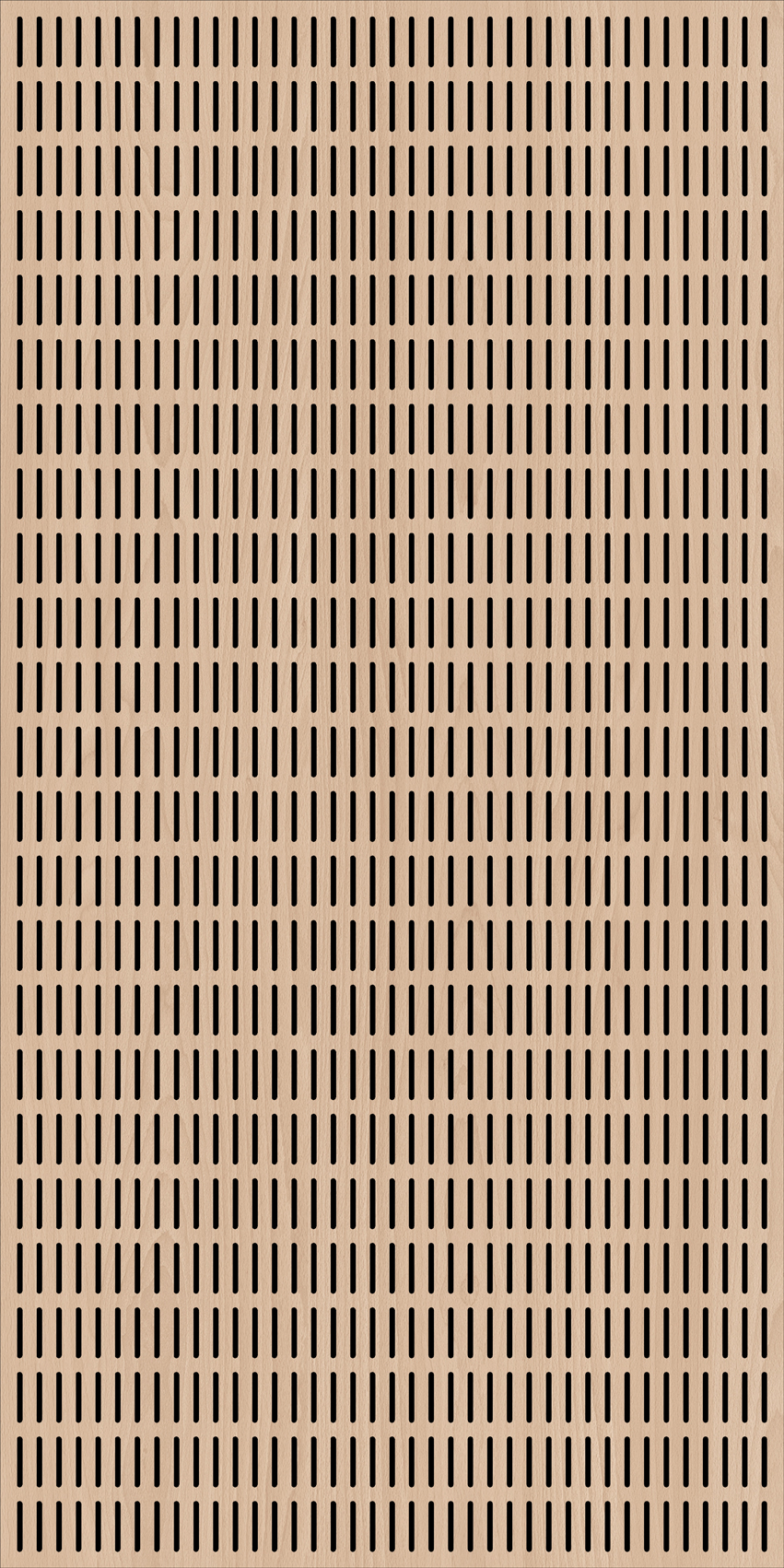

04 - FS8X70/30C30G
Slots (W x H)
8x70mm
Centers
30mm
Row Gap
100mm
NRC Value
0.85
Coverage %
19.83
Name

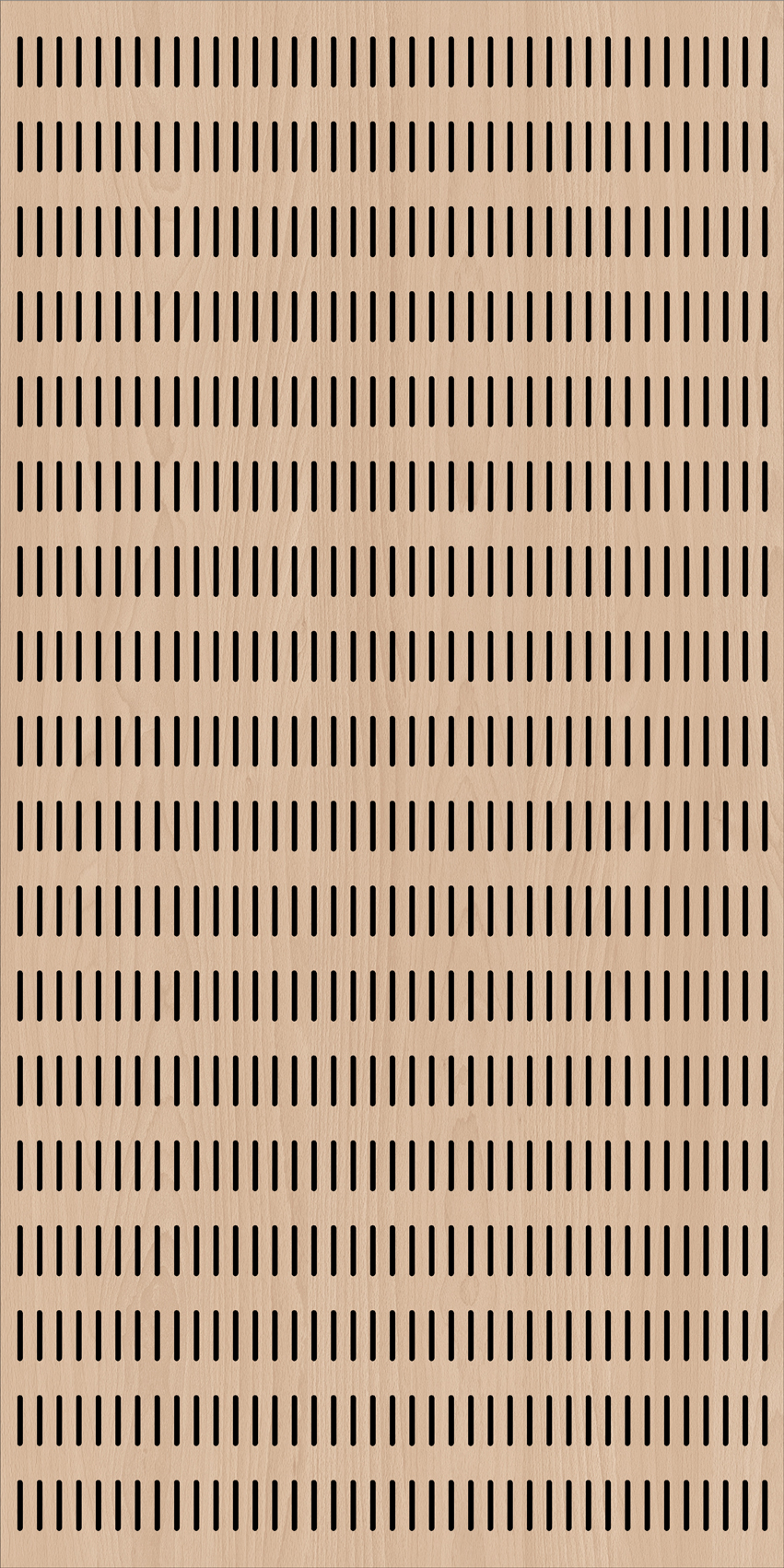

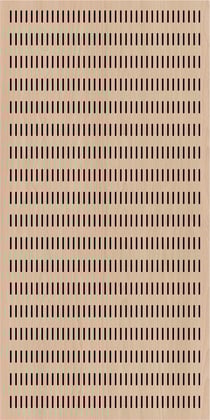

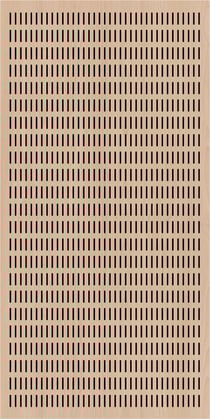

05- FS8X70/30C60G
Slots (W x H)
8x70mm
Centers
30mm
Row Gap
130mm
NRC Value
0.8
Coverage %
19.83
Name

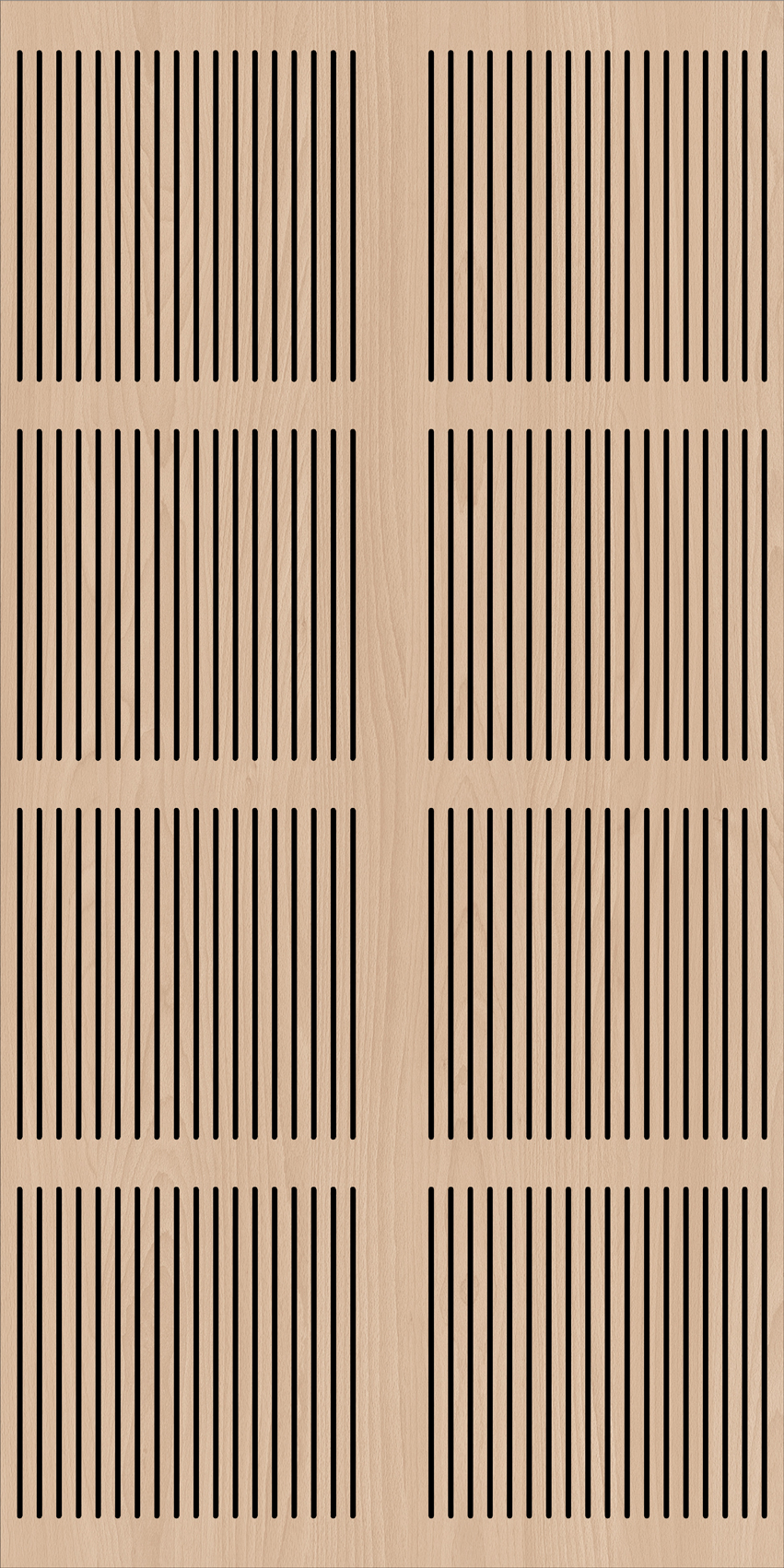

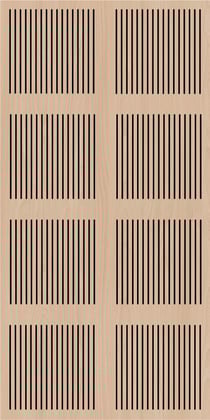

06 - FS8X500/30C130GV
Slots (W x H)
8x500mm
Centers
30mm
Row Gap
600mm
NRC Value
0.9
Coverage %
16.03
Name

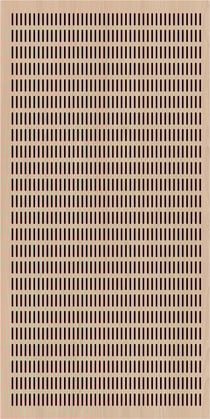

07 - FS8X70/25C25G
Slots (W x H)
8x70mm
Centers
25mm
Row Gap
95mm
NRC Value
0.9
Coverage %
24.9
Name

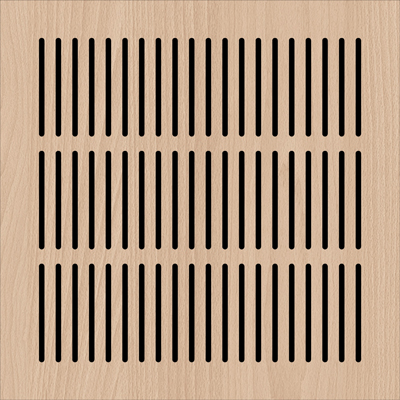

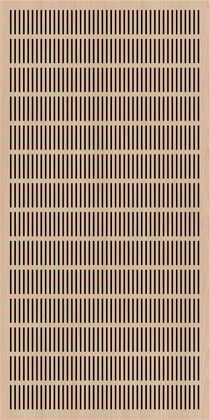

08 - FS8X140/25C25G
Slots (W x H)
8x140mm
Centers
25mm
Row Gap
165mm
NRC Value
0.9
Coverage %
26.74
Name

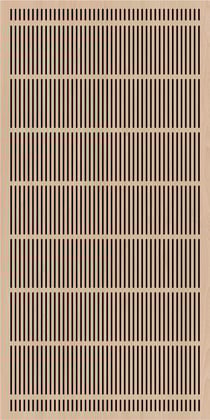

09 - FS8X280/25C25
Slots (W x H)
8x280mm
Centers
25mm
Row Gap
305mm
NRC Value
0.9
Coverage %
26.16
Name
10 - FS8X500/50C50G
Slots (W x H)
8x500mm
Centers
50mm
Row Gap
600mm
NRC Value
0.85
Coverage %
20.25
Name

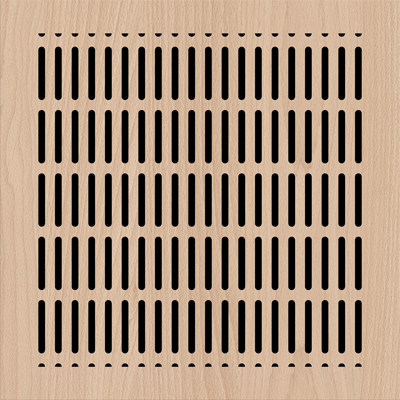

11 - FS10X70/25C25G
Slots (W x H)
10x70mm
Centers
25mm
Row Gap
95mm
NRC Value
0.9
Coverage %
31.76
Name
12 - FS10X140/25C25G
Slots (W x H)
10x140mm
Centers
25mm
Row Gap
165mm
NRC Value
0.9
Coverage %
33.78
Name

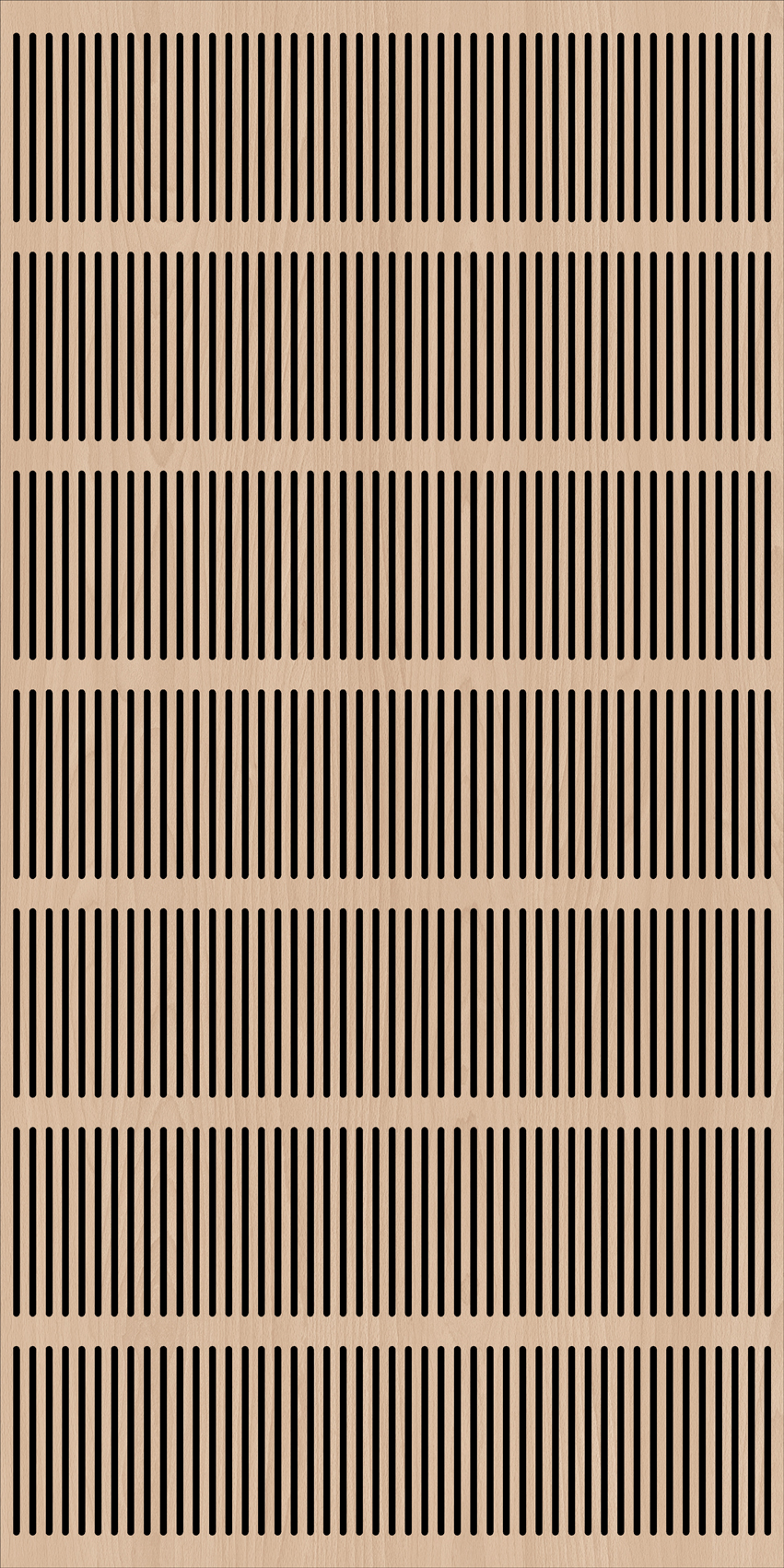

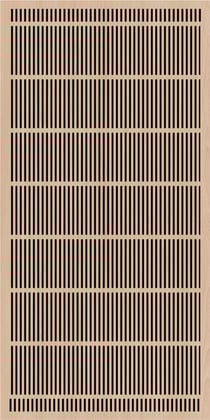

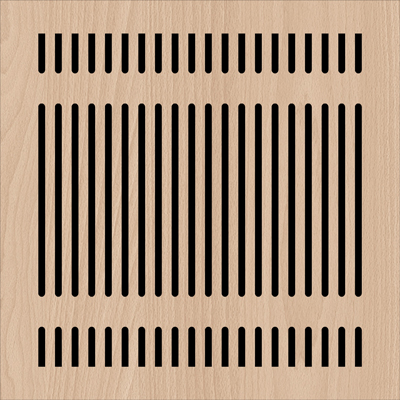

13 - FS10X280/25C25G
Slots (W x H)
10x280mm
Centers
25mm
Row Gap
300mm
NRC Value
0.9
Coverage %
32.88
Name

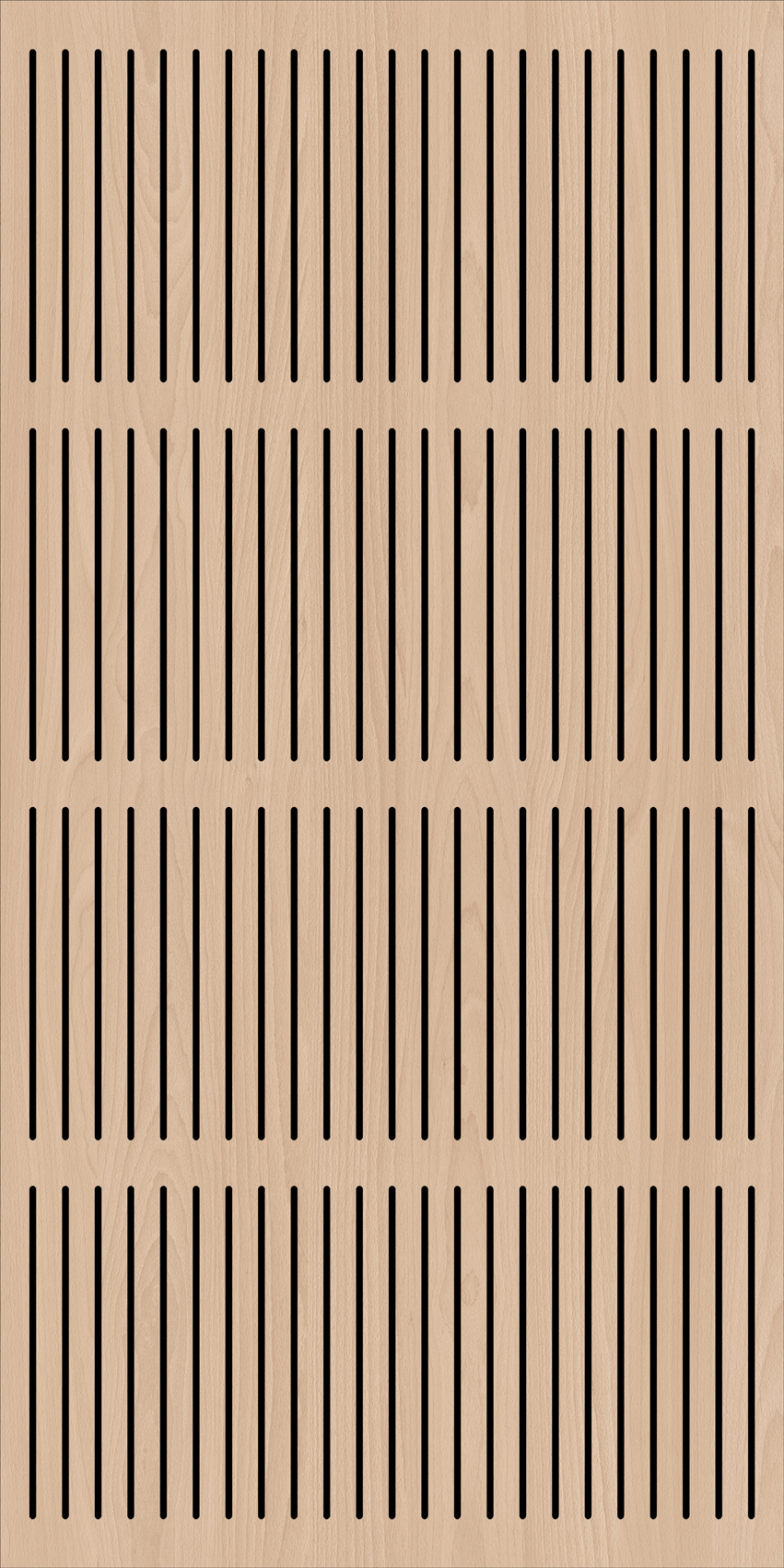

14 - FS10X500/50C50G
Slots (W x H)
10x500mm
Centers
50mm
Row Gap
600mm
NRC Value
0.85
Coverage %
16.22
Name

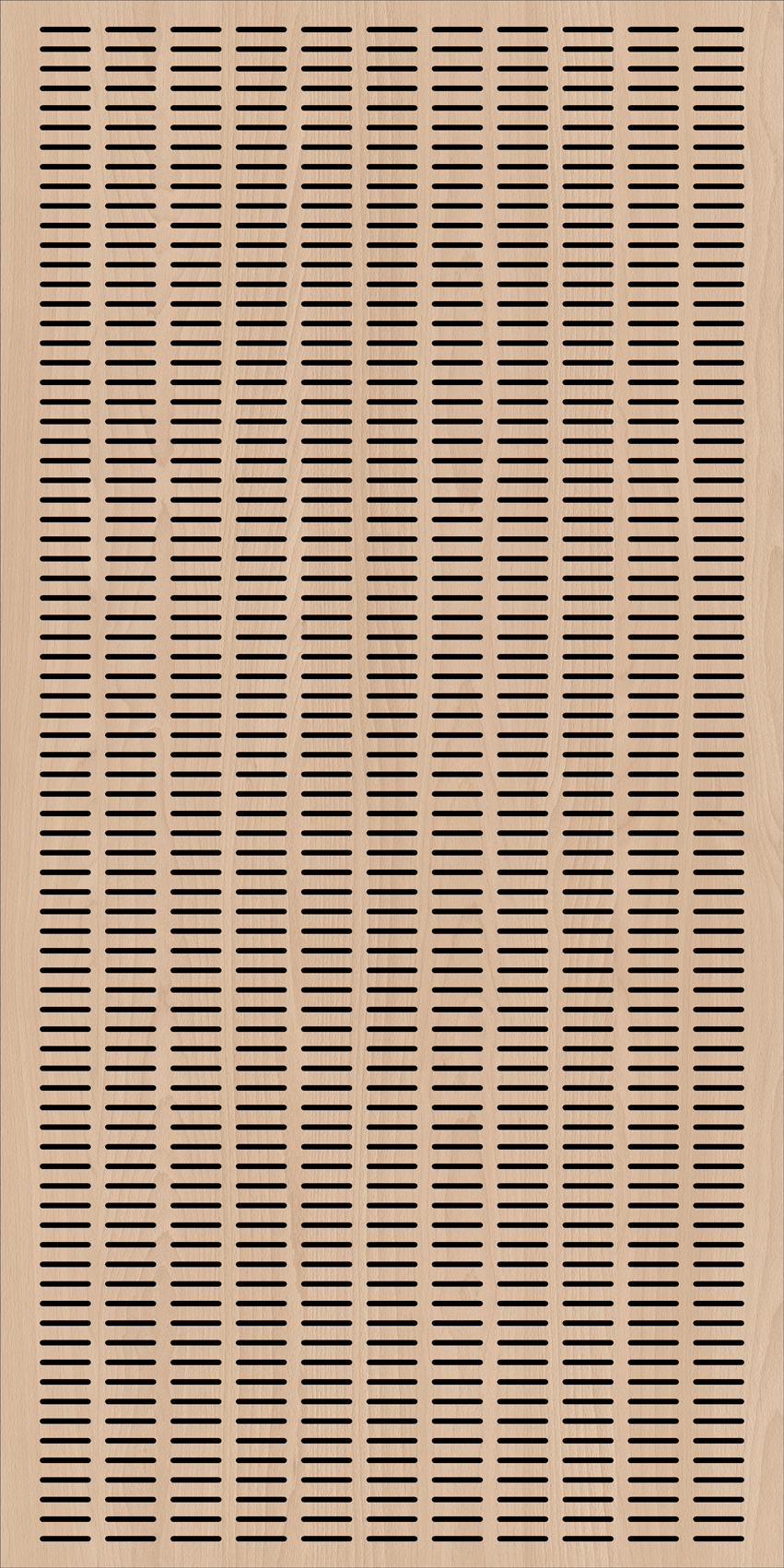

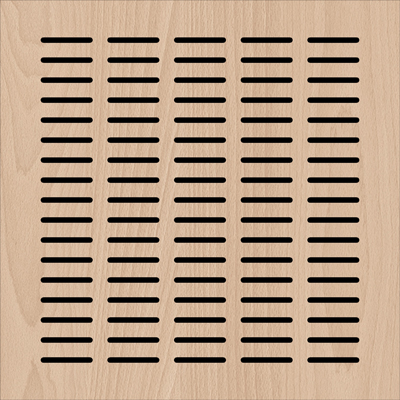

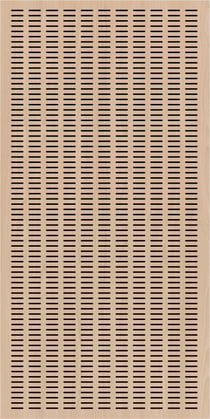

15 - FS70X8/30C30G
Slots (W x H)
70x8mm
Centers
100mm
Row Gap
30mm
NRC Value
0.85
Coverage %
18.18
Name
16 - FS70X8/60C30G
Slots (W x H)
70x8mm
Centers
60mm
Row Gap
30mm
NRC Value
0.8
Coverage %
14.88

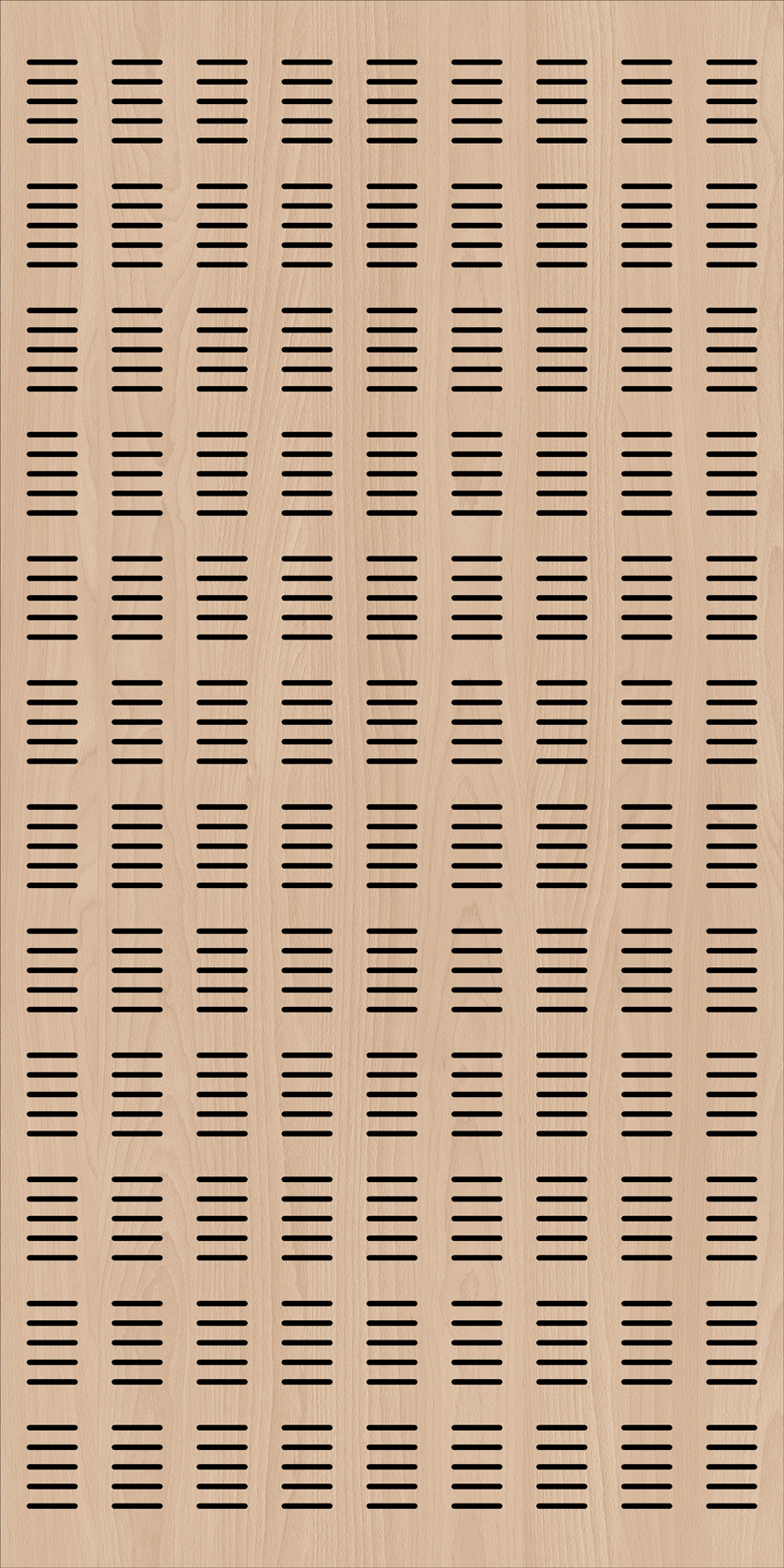

Name

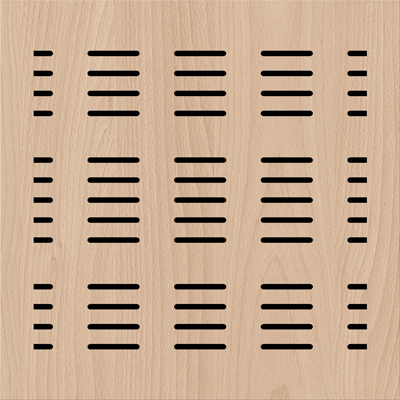

17 - FS70X8/60C30/70G
Slots (W x H)
70x8mm
Centers
60mm
Row Gap
30/70mm
NRC Value
0.8
Coverage %
11.46
Name

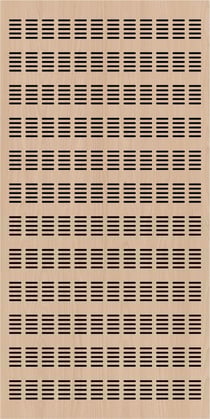

18 - FS70X10/25C25/70G
Slots (W x H)
70x10mm
Centers
25mm
Row Gap
25/70mm
NRC Value
0.9
Coverage %
22.22
Name
19 - FS500X10/50C50G
Slots (W x H)
500x10mm
Centers
50mm
Row Gap
50mm
NRC Value
0.85
Coverage %
16.83
Name

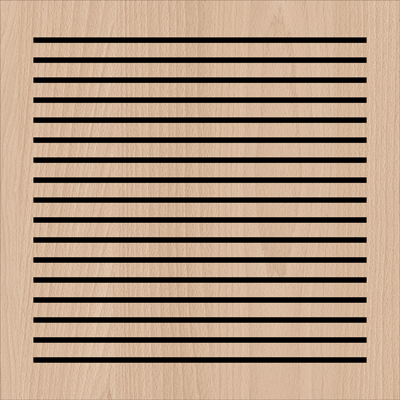

20 - FS500X8/30C130GH
Slots (W x H)
500x8mm
Centers
30mm
Row Gap
130mm
NRC Value
0.9
Coverage %
22.22
Name

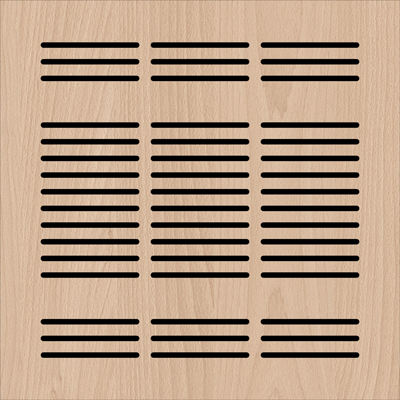

21 - FS140X8/25C25/70G
Slots (W x H)
140x8mm
Centers
25mm
Row Gap
25mm
NRC Value
0.9
Coverage %
25.6
Name

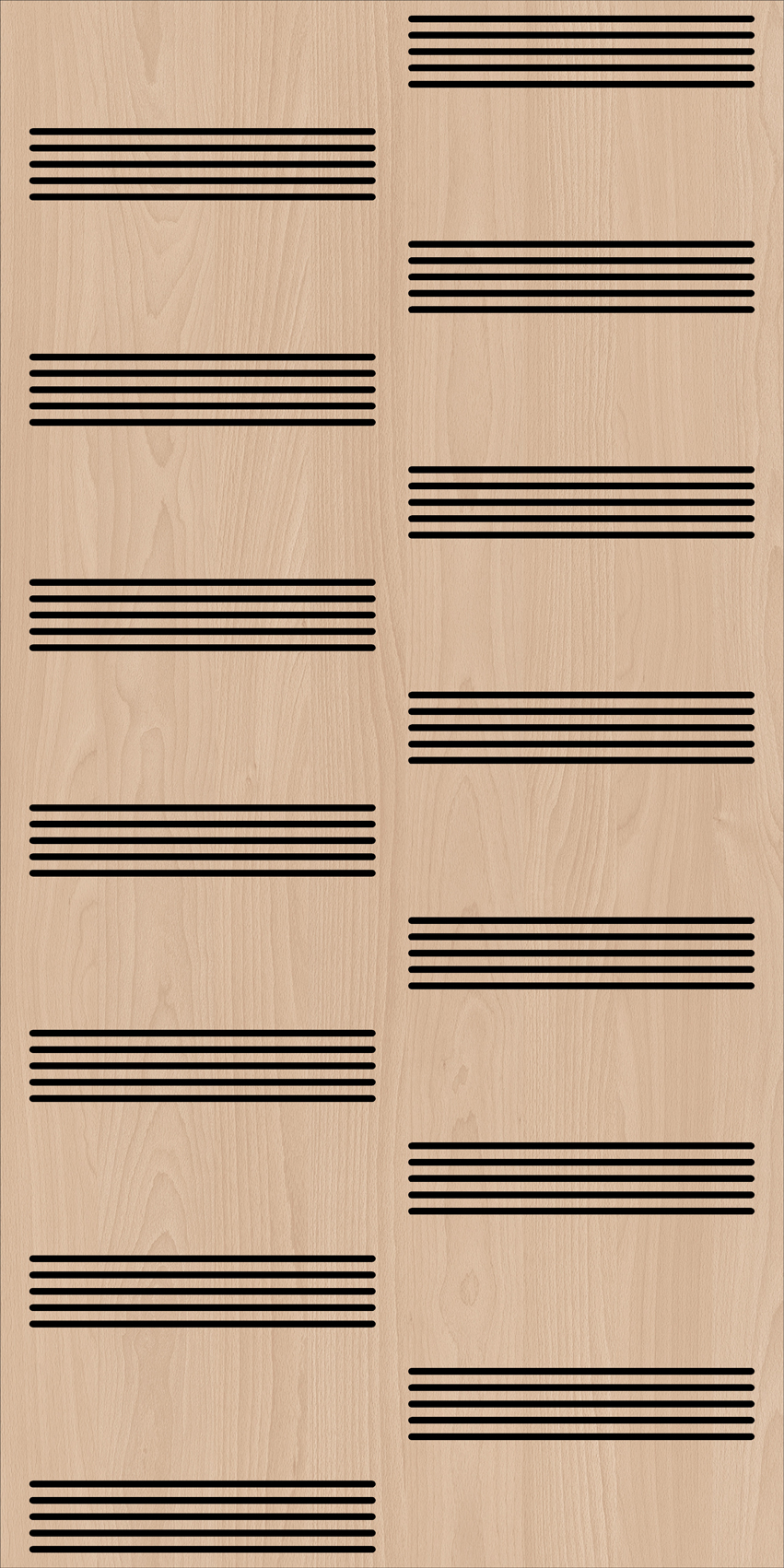

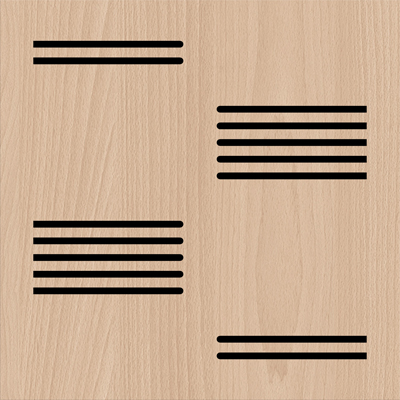

22 - FS520X10/25C60/245G
Slots (W x H)
250x10mm
Centers
25mm
Row Gap
60x245
NRC Value
On Request
Coverage %
2.51
Name

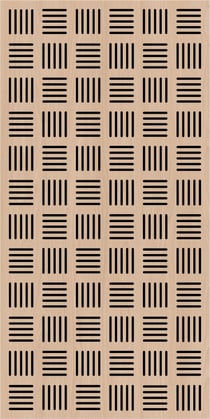

23 - FS12X125/30C50GA
Slots (W x H)
12x125mm
Centers
30mm
Row Gap
50mm
NRC Value
On Request
Coverage %
12.83
Name

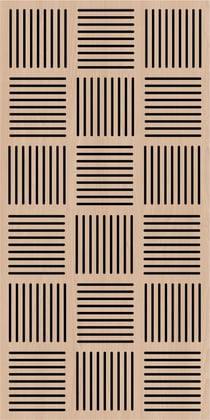

24 - FS12X135/40C65GA
Slots (W x H)
12x135mm
Centers
40mm
Row Gap
65mm
NRC Value
On Request
Coverage %
19.79

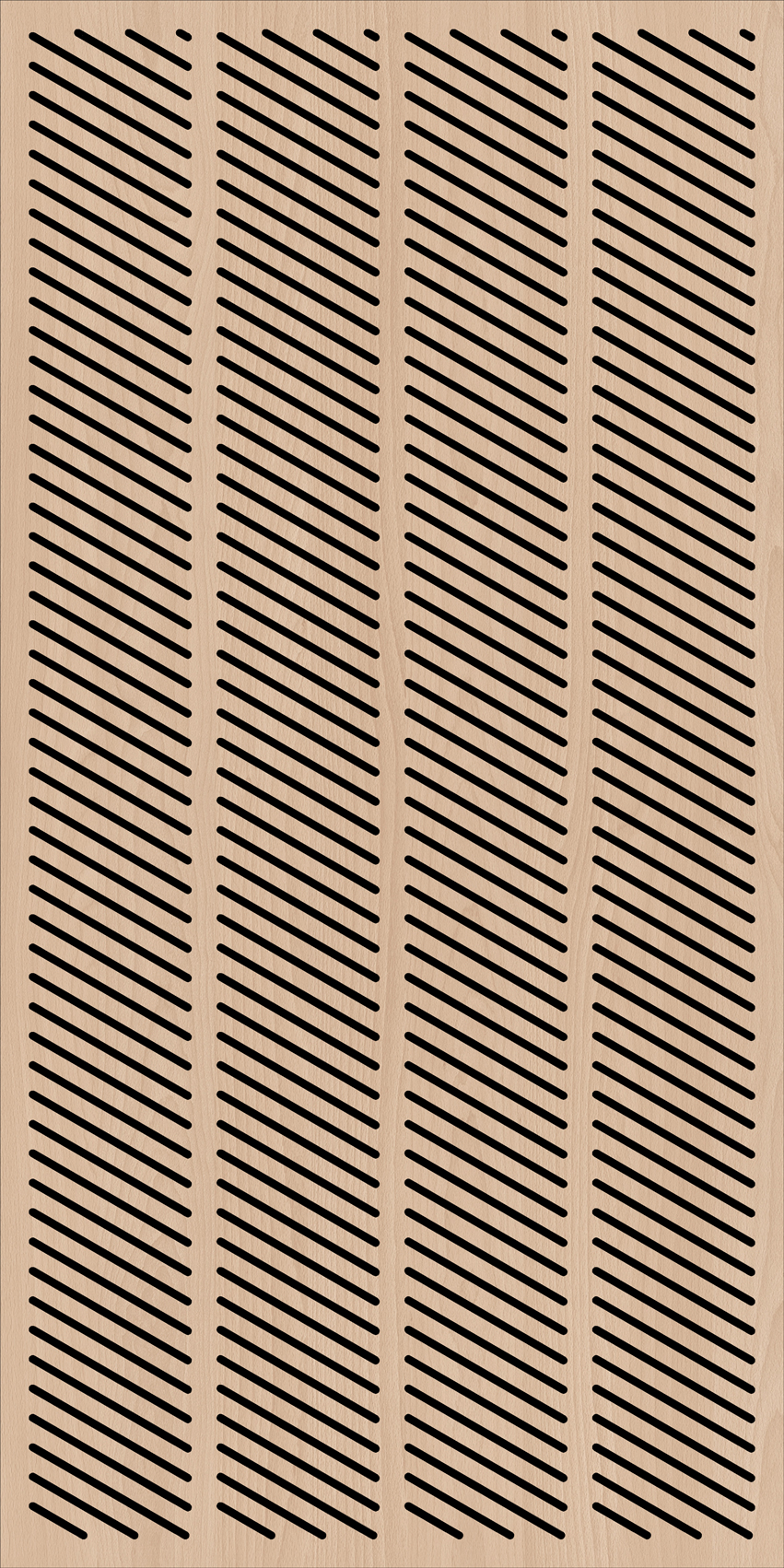

Name

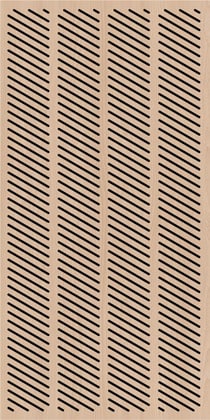

25 - FS12X50/50C45GADR
Slots (W x H)
12x50mm
Centers
50mm
Row Gap
45mm
NRC Value
On Request
Coverage %
20.03
Name

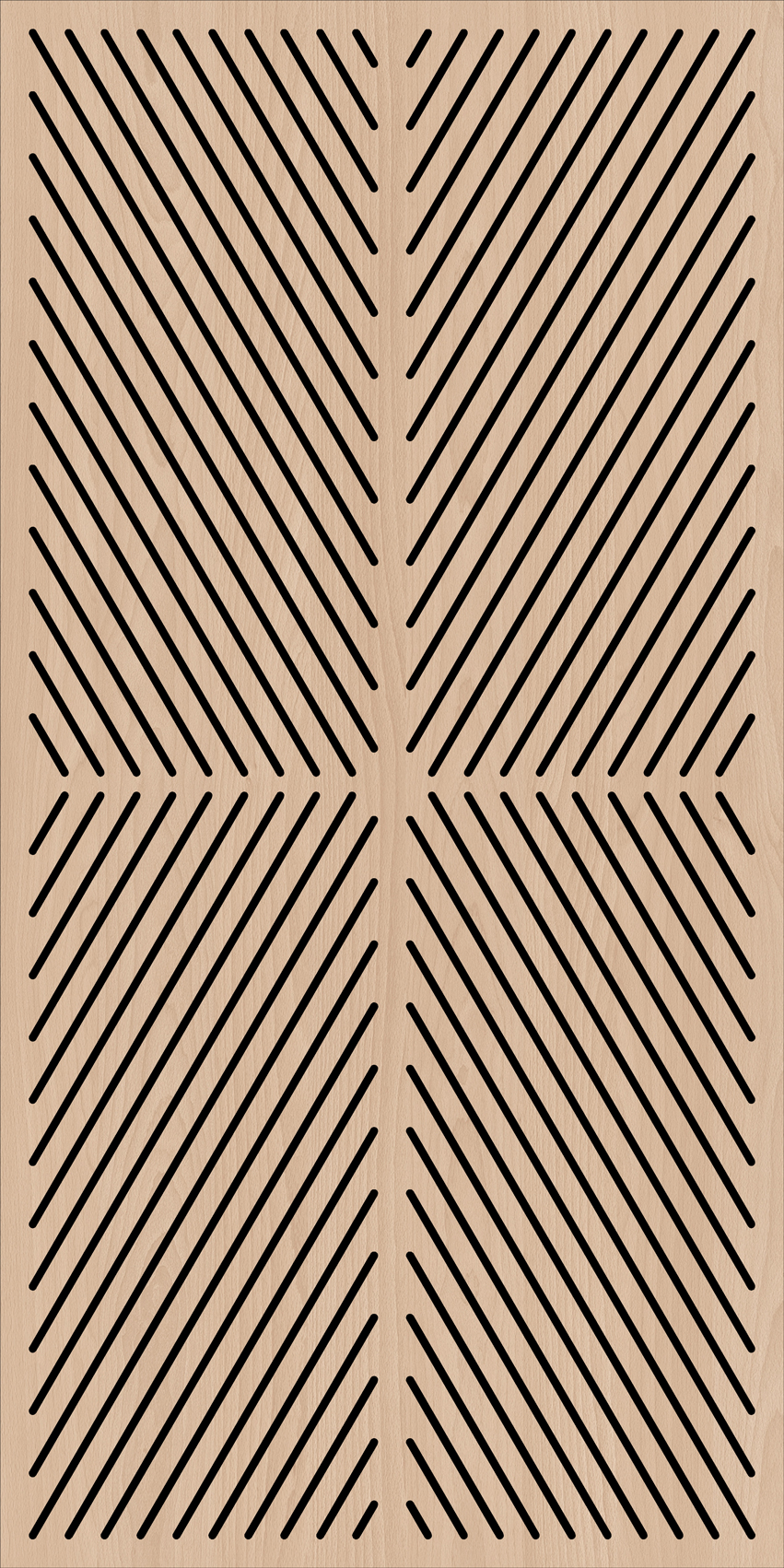

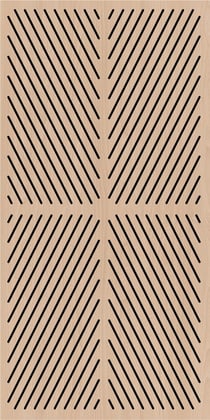

26 - FS12XV/55C35GDS
Slots (W x H)
12 x Various mm
Centers
55mm
Row Gap
35mm
NRC Value
On Request
Coverage %
19.79
Name

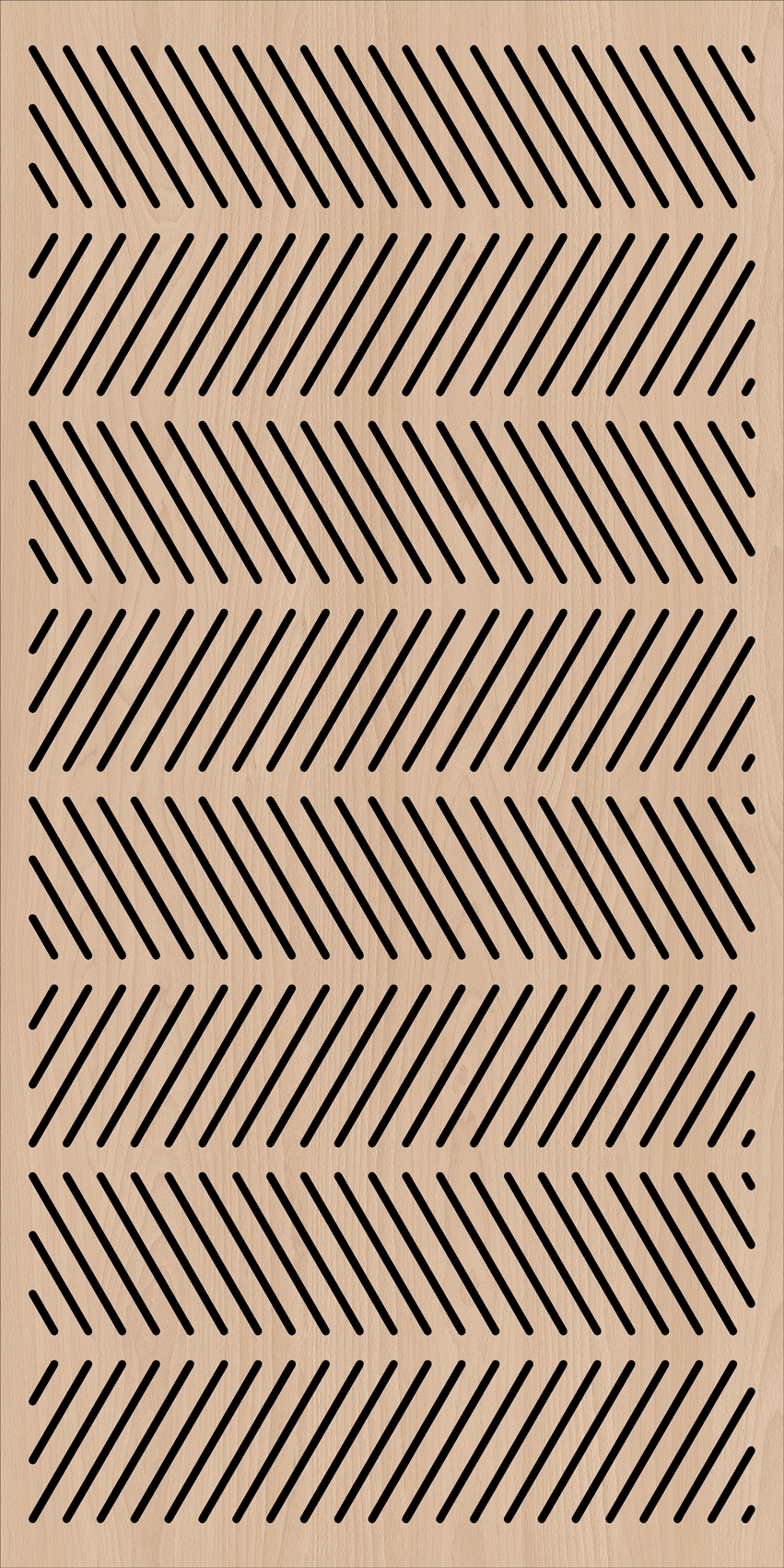

27 - FS12XV/50C45GZ
Slots (W x H)
12 x Various mm
Centers
50mm
Row Gap
45mm
NRC Value
On Request
Coverage %
19.44
Name

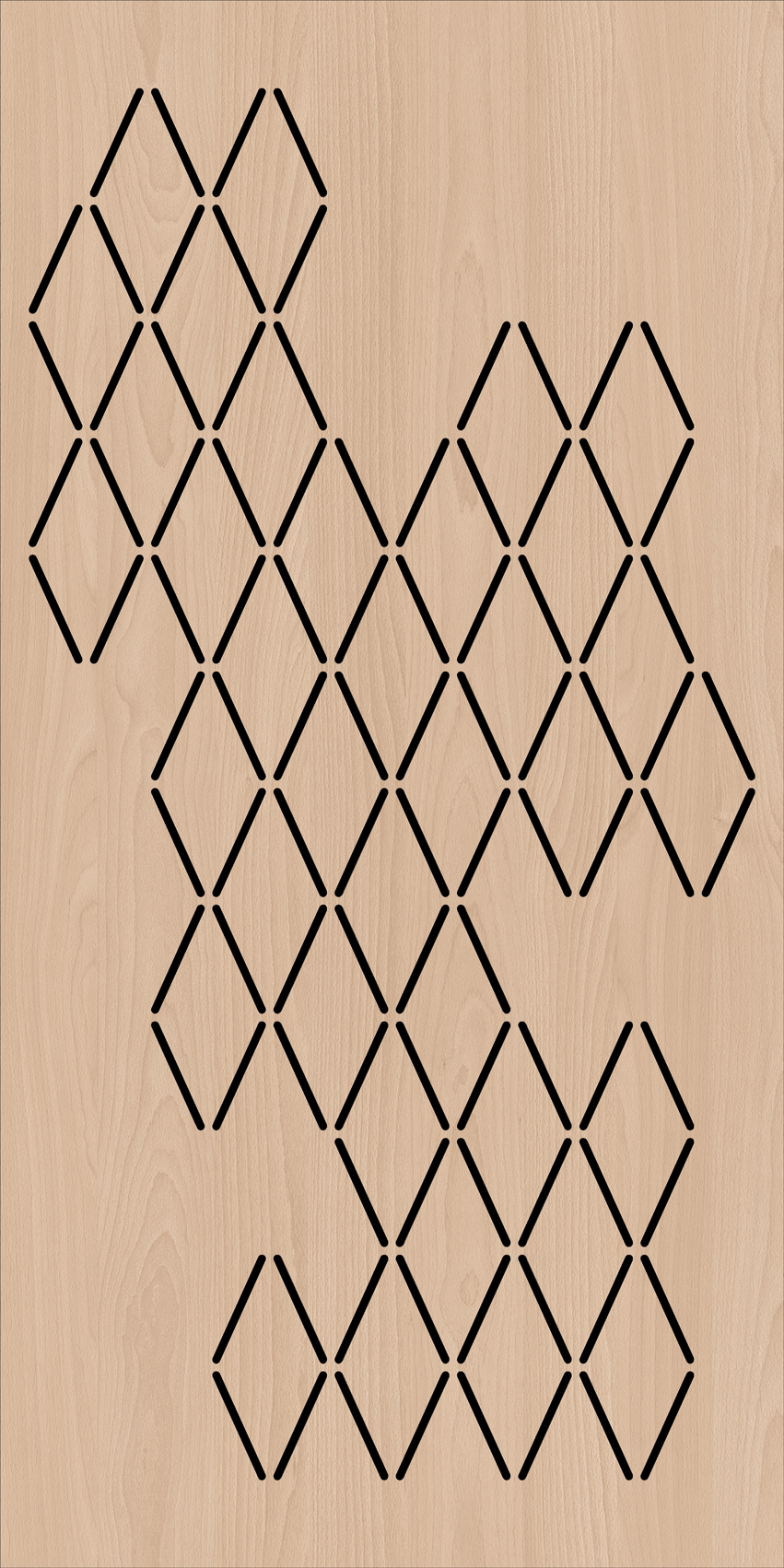

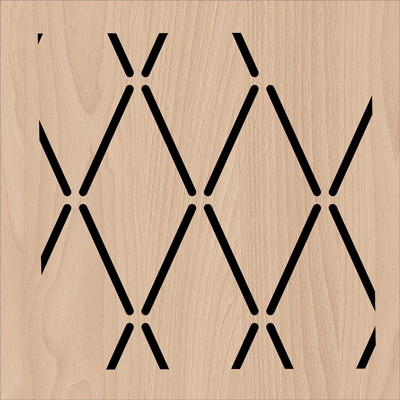

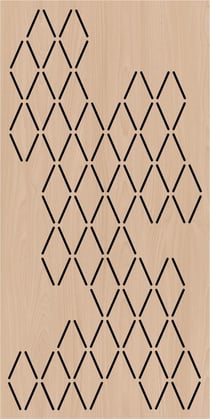

28 - FS12X170SDS
Slots (W x H)
12x170mm
Centers
Varies
Row Gap
Varies
NRC Value
On Request
Coverage %
7.29
Name

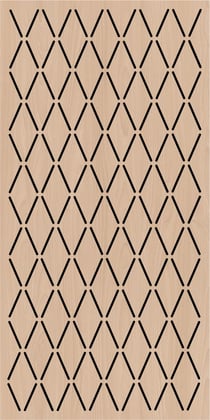

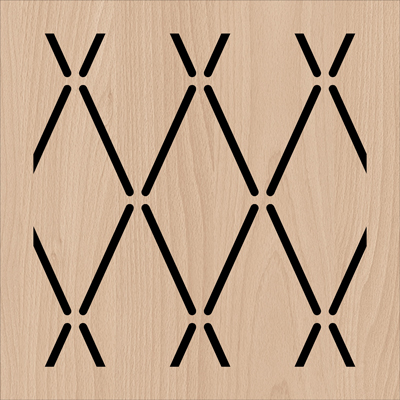

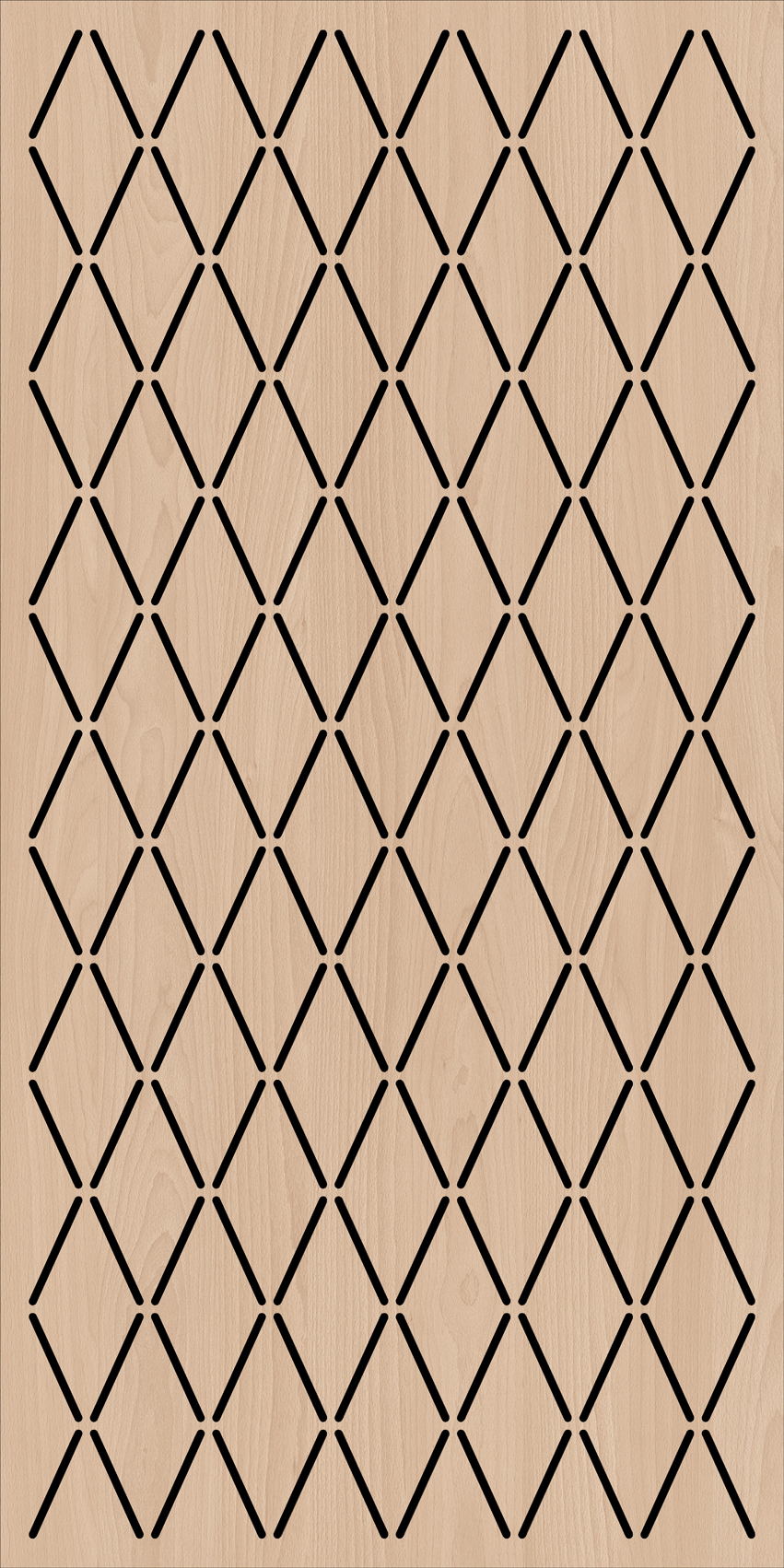

29 - FS12X170SDG
Slots (W x H)
12x170mm
Centers
Varies
Row Gap
Varies
NRC Value
On Request
Coverage %
11.46
Name

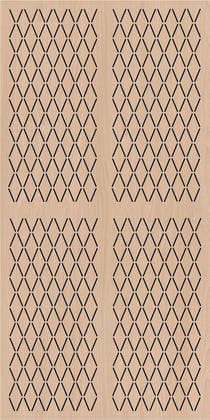

30 - FS12X170SDP
Slots (W x H)
12x170mm
Centers
Varies
Row Gap
Varies
NRC Value
On Request
Coverage %
11.46
Name
01 - FS8X70-15C25G
Slots (W x H)
8x70mm
Centers
15mm
Row Gap
25mm
NRC Value
0.9
Coverage %
1.69
Name
02 - FS8X140-15C25G
Slots (W x H)
8x140mm
Centers
15mm
Row Gap
25mm
NRC Value
0.9
Coverage %
1.62
Name
03 - FS8X280/15C25G
Slots (W x H)
8x280mm
Centers
15mm
Row Gap
25mm
NRC Value
TBC
Coverage %
TBC
Name
04 - FS8X280/30C60G
Slots (W x H)
8x280mm
Centers
30mm
Row Gap
60mm
NRC Value
TBC
Coverage %
TBC
Name
05 - FS8X70/30C30G
Slots (W x H)
8x70mm
Centers
30mm
Row Gap
30mm
NRC Value
0.85
Coverage %
2.31
Name
06 - FS8X70/30C60G
Slots (W x H)
8x70mm
Centers
30mm
Row Gap
60mm
NRC Value
0.8
Coverage %
2.31
Name
07 - FS8X500/30C130GV
Slots (W x H)
8x500mm
Centers
30mm
Row Gap
130mm
NRC Value
0.9
Coverage %
2.42
Name
08 - FS8X70/25C25G
Slots (W x H)
8x70mm
Centers
25mm
Row Gap
25mm
NRC Value
0.9
Coverage %
2.16
Name
09 - FS8X140/25C25G
Slots (W x H)
8x140mm
Centers
25mm
Row Gap
25mm
NRC Value
TBC
Coverage %
TBC
Name
10 - FS8X280/25C25G
Slots (W x H)
8x280mm
Centers
25mm
Row Gap
25mm
NRC Value
0.9
Coverage %
2.13
Name
11 - FS8X500/50C50G
Slots (W x H)
8x500mm
Centers
50mm
Row Gap
50mm
NRC Value
0.85
Coverage %
2.3
Name

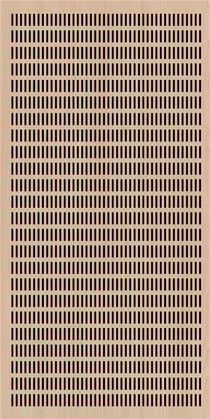

12 - FS10X70/25C25G
Slots (W x H)
10x70mm
Centers
25mm
Row Gap
25mm
NRC Value
0.9
Coverage %
1.97
Name
13 - FS10X140/25C25G
Slots (W x H)
10x140mm
Centers
25mm
Row Gap
25mm
NRC Value
0.9
Coverage %
1.91
Name
14 - FS10X280/25C25G
Slots (W x H)
10x280mm
Centers
25mm
Row Gap
25mm
NRC Value
0.9
Coverage %
1.93
Name
15 - FS10X500/50C50G
Slots (W x H)
10x500mm
Centers
50mm
Row Gap
50mm
NRC Value
0.85
Coverage %
2.41
Name
16 - FS70X8/30C30G
Slots (W x H)
70x8mm
Centers
30mm
Row Gap
30mm
NRC Value
0.85
Coverage %
2.36
Name
17 - FS70X8/60C30G
Slots (W x H)
70x8mm
Centers
60mm
Row Gap
30mm
NRC Value
0.8
Coverage %
2.45
Name
18 - FS70X8/60C30/70G
Slots (W x H)
70x8mm
Centers
60mm
Row Gap
30/70mm
NRC Value
0.8
Coverage %
2.55
Name
19 - FS70X10/25C25/70G
Slots (W x H)
70x10mm
Centers
25mm
Row Gap
25/70mm
NRC Value
0.9
Coverage %
2.24
Name
20 - FS500X10/50C50G
Slots (W x H)
500x10mm
Centers
50mm
Row Gap
50mm
NRC Value
0.85
Coverage %
2.39
Name
21 - FS500X8/30C130GH
Slots (W x H)
500x8mm
Centers
30mm
Row Gap
130mm
NRC Value
0.9
Coverage %
2.24
Name
22 - FS140X8/25C25/70G
Slots (W x H)
140x8mm
Centers
25mm
Row Gap
25/70mm
NRC Value
0.9
Coverage %
2.14
Name

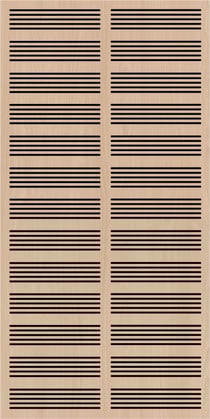

23 - FS520X10/25C65G
Slots (W x H)
520x10mm
Centers
25mm
Row Gap
65mm
NRC Value
TBC
Coverage %
1.89
Name

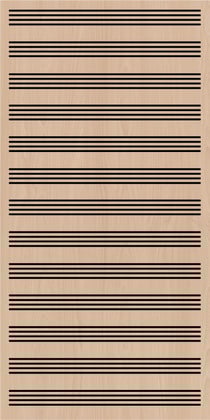

24 -FS1000X10/25C90G
Slots (W x H)
1000x10mm
Centers
25mm
Row Gap
90mm
NRC Value
TBC
Coverage %
TBC
Name
25 - FS520X10/25C60/245GS
Slots (W x H)
520x10mm
Centers
25mm
Row Gap
60/245mm
NRC Value
TBC
Coverage %
2.51
Name
26 - FS12X125/30C50GA
Slots (W x H)
12x125mm
Centers
30mm
Row Gap
50mm
NRC Value
TBC
Coverage %
2.15
Name
27 - FS12X135/40C65GA
Slots (W x H)
12x135mm
Centers
40mm
Row Gap
65mm
NRC Value
TBC
Coverage %
2.31
Name

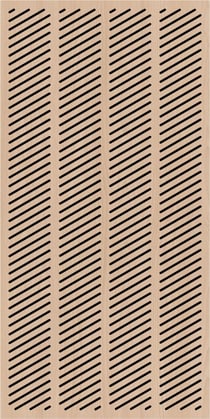

28 - FS12X50/50C45GADL
Slots (W x H)
12x50mm
Centers
50mm
Row Gap
45mm
NRC Value
TBC
Coverage %
TBC
Name
29 - FS12X50/50C45GADR
Slots (W x H)
12x50mm
Centers
50mm
Row Gap
45mm
NRC Value
TBC
Coverage %
TBC
Name

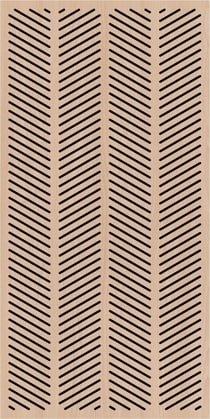

30 - FS12X50/50C45GHD
Slots (W x H)
12x50mm
Centers
50mm
Row Gap
45mm
NRC Value
TBC
Coverage %
2.3
Name
31 - FS12XV/55C35GDS
Slots (W x H)
12 x Various
Centers
55mm
Row Gap
35mm
NRC Value
TBC
Coverage %
2.31
Name
32 - FS12XV/50C45GZ
Slots (W x H)
12 x Various
Centers
50mm
Row Gap
45mm
NRC Value
TBC
Coverage %
2.32
Name
33 - FS12X170SDS
Slots (W x H)
12x170mm
Centers
-
Row Gap
-
NRC Value
TBC
Coverage %
2.67
Name
34 - FS12X170SDG
Slots (W x H)
12x170mm
Centers
-
Row Gap
-
NRC Value
TBC
Coverage %
2.55
Name
35 - FS12X170SDP
Slots (W x H)
12x170mm
Centers
-
Row Gap
-
NRC Value
TBC
Coverage %
2.55
Perforation Panel Pattern: Groove
Name
01 - FG1W10CA
Groove Width
1mm
Centers
10mm
NRC Value
TBC
Coverage %
TBC
Name

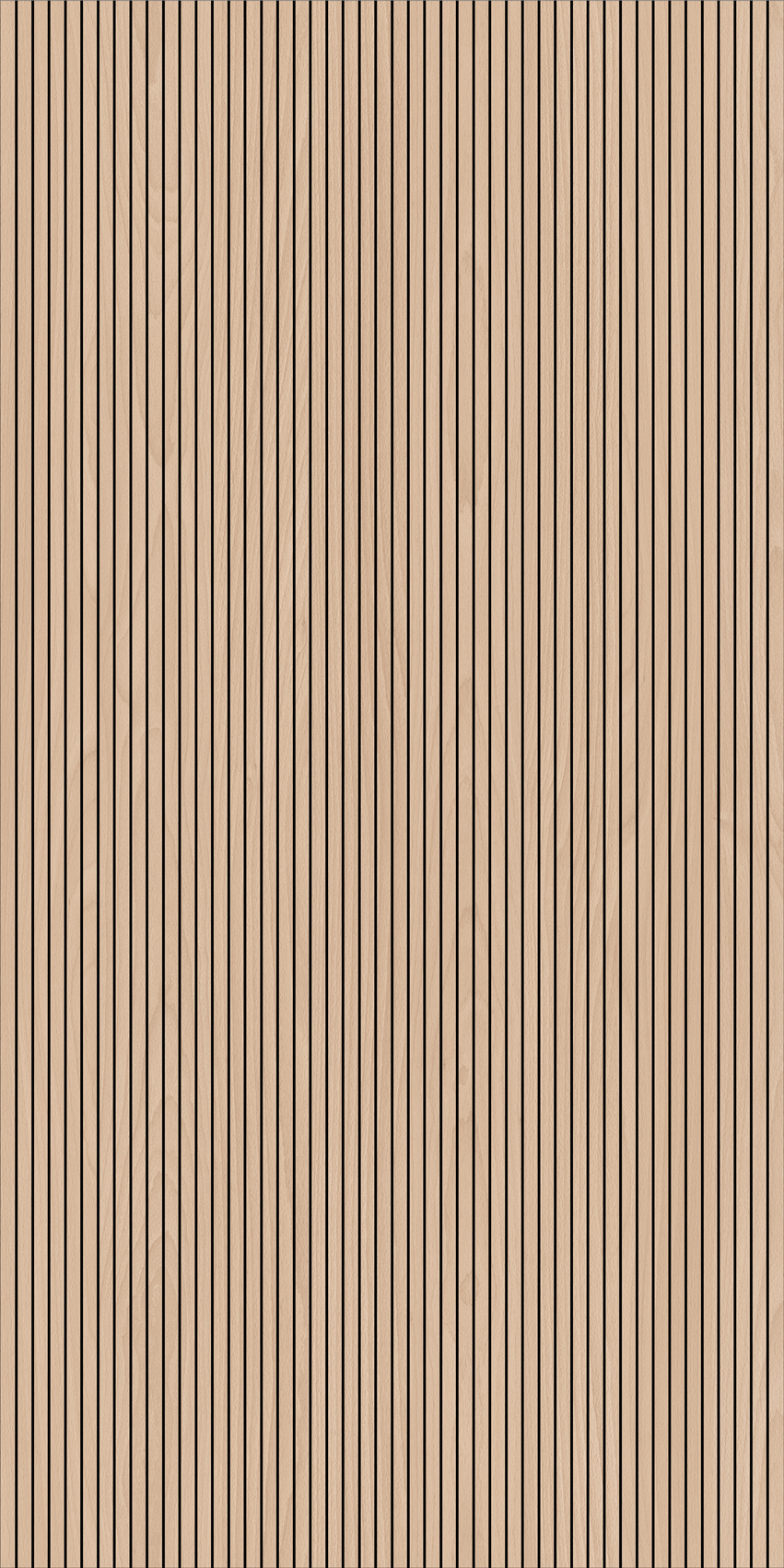

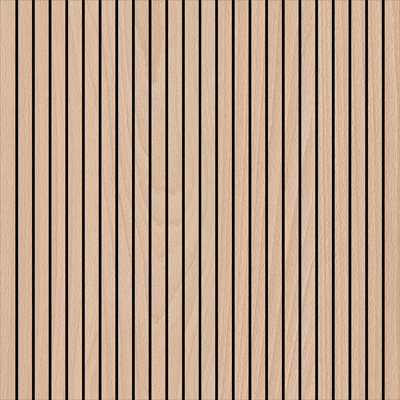

01 - FG4W25CA
Groove Width
4mm
Centers
25mm
NRC Value
0.8
Coverage %
15.67
Name

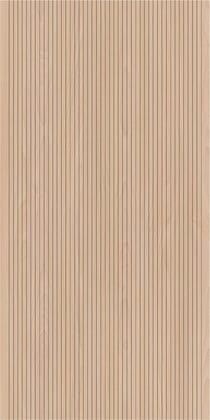

02 - FG1W25CA
Groove Width
1mm
Centers
25mm
NRC Value
TBC
Coverage %
TBC
Name

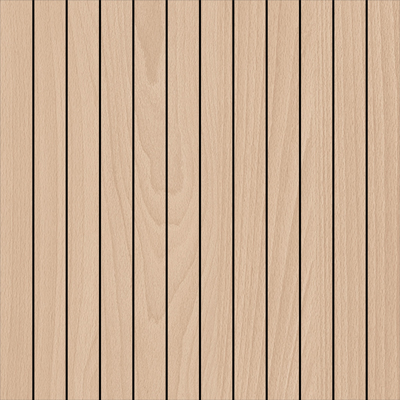

02 - FG4W50CA
Groove Width
4mm
Centers
50mm
NRC Value
0.7
Coverage %
8
Name
03 - FG1W50CA
Groove Width
1mm
Centers
50mm
NRC Value
TBC
Coverage %
TBC
Name

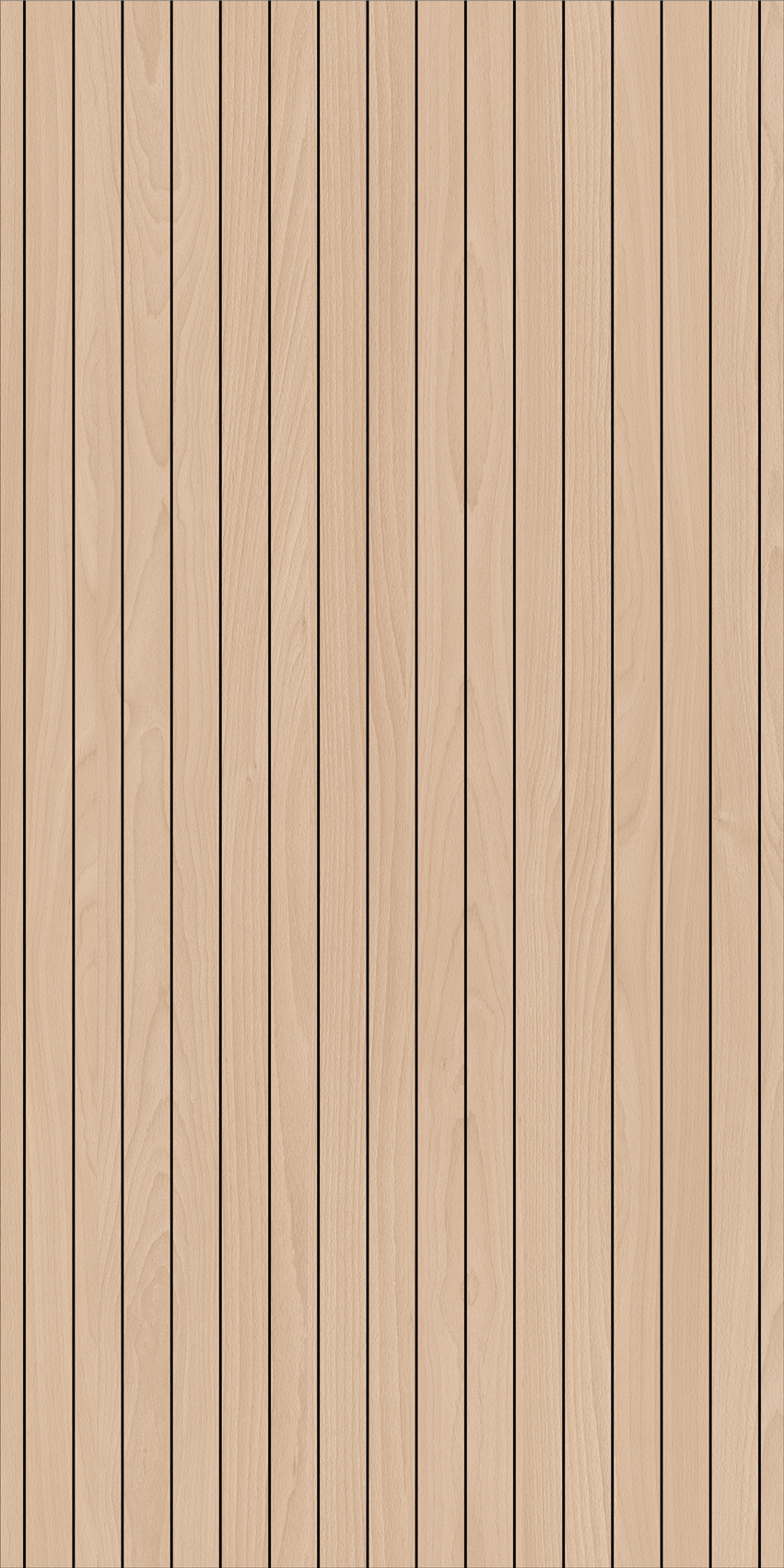

03 - FG4W75CA
Groove Width
4mm
Centers
37.5mm
NRC Value
0.6
Coverage %
5.33
Name

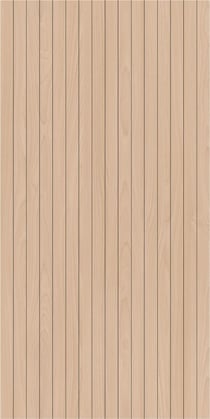

04 - FG1W75CA
Groove Width
1mm
Centers
75mm
NRC Value
TBC
Coverage %
TBC
Name

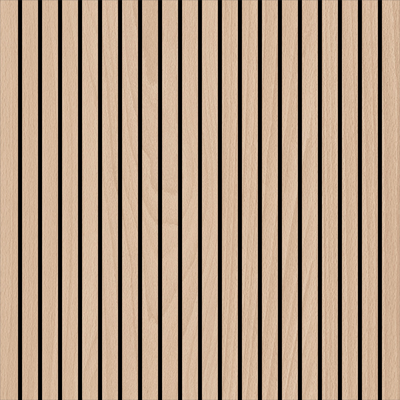

04 - FG6W30CA
Groove Width
6mm
Centers
30mm
NRC Value
0.85
Coverage %
19.5
Name
05 - FG3W25CA
Groove Width
3mm
Centers
25mm
NRC Value
TBC
Coverage %
TBC
Name

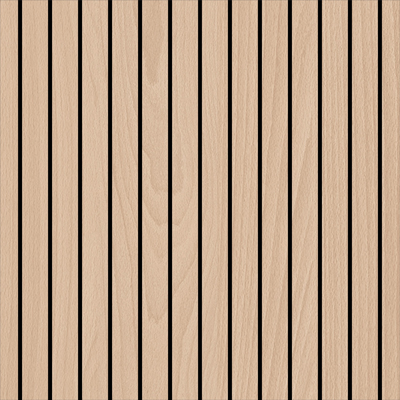

05 - FG6W45CA
Groove Width
6mm
Centers
TBC
NRC Value
0.8
Coverage %
13
Name
06 - FG3W50CA
Groove Width
3mm
Centers
50mm
NRC Value
0.65
Coverage %
2.71
Name
06 - FG6W60CA
Groove Width
6mm
Centers
60mm
NRC Value
0.75
Coverage %
10
Name
07 - FG3W75CA
Groove Width
3mm
Centers
75mm
NRC Value
0.5
Coverage %
2.76
Name

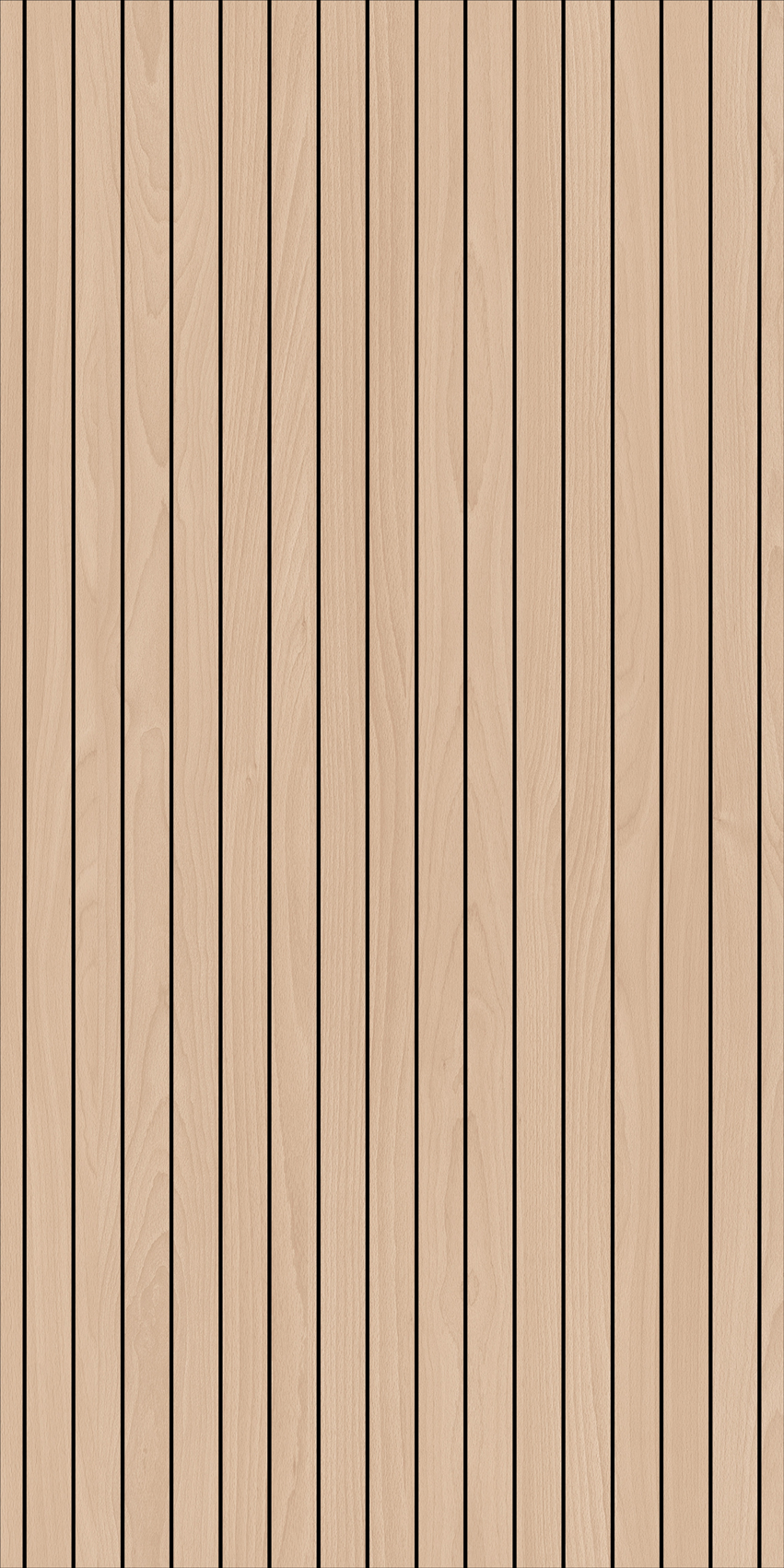

07 - FG6W75CA
Groove Width
6mm
Centers
75mm
NRC Value
0.65
Coverage %
8
Name
08 - FG6W30CA
Groove Width
6mm
Centers
30mm
NRC Value
0.85
Coverage %
2.32
Name

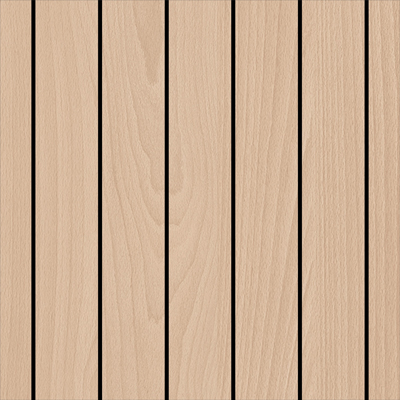

08 - FG6W100CA
Groove Width
6mm
Centers
100mm
NRC Value
0.6
Coverage %
6
Name
09 - FG6W45CA
Groove Width
6mm
Centers
45mm
NRC Value
0.8
Coverage %
2.51
Name

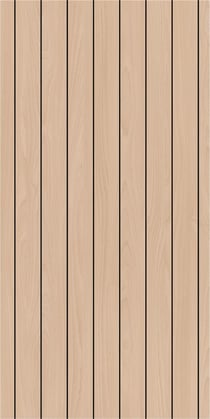

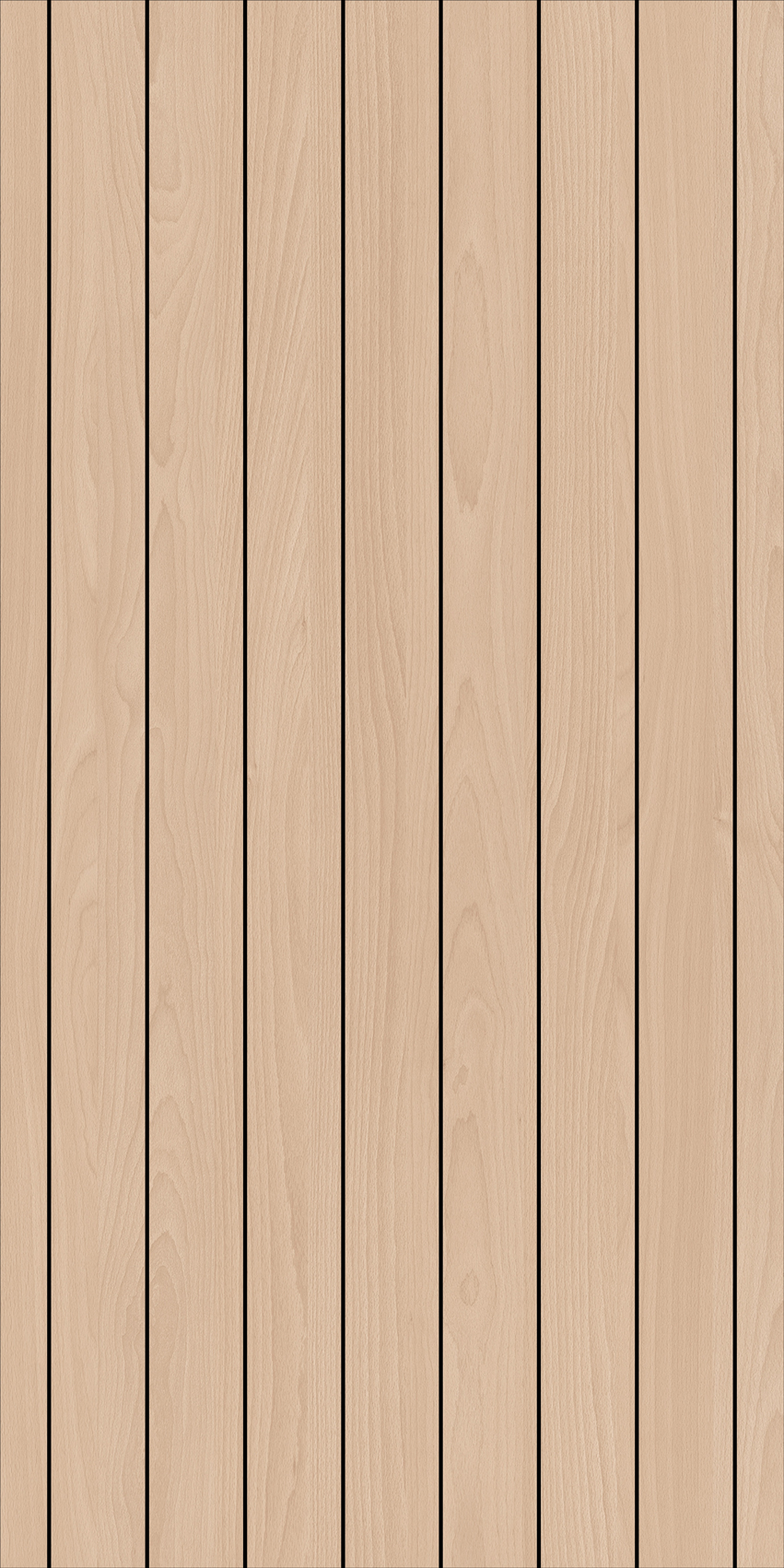

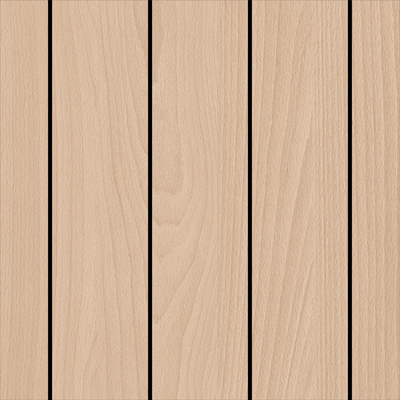

09 - FG6W150CA
Groove Width
6mm
Centers
150mm
NRC Value
0.45
Coverage %
4
Name

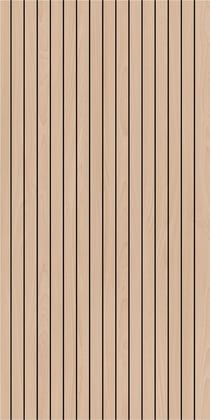

10 - FG6W60CA
Groove Width
6mm
Centers
60mm
NRC Value
0.75
Coverage %
2.59
Name

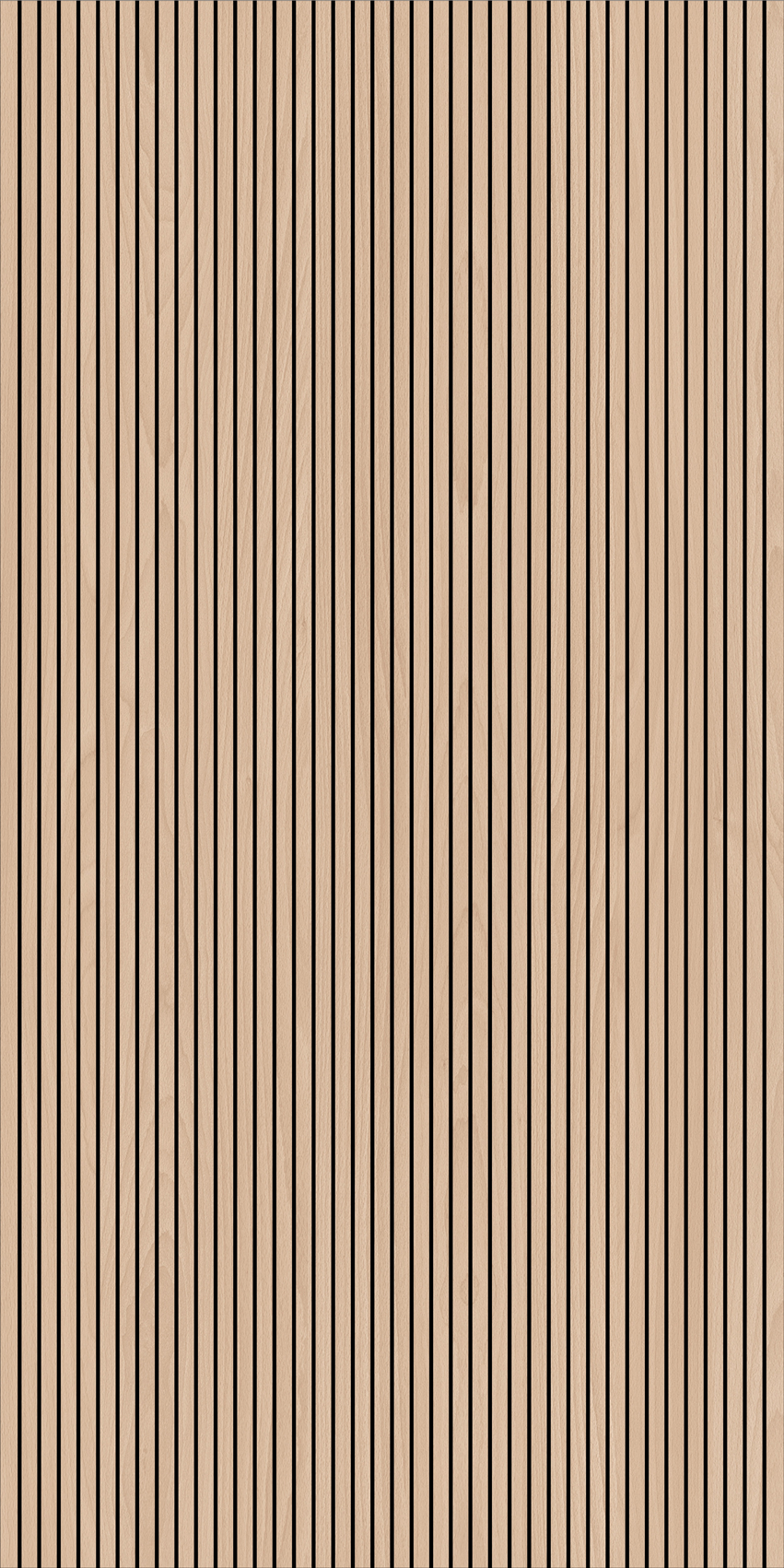

10 - FG8W30CA
Groove Width
8mm
Centers
30mm
NRC Value
0.9
Coverage %
26
Name

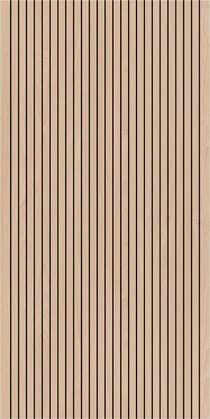

11 - FG6W75CA
Groove Width
6mm
Centers
75mm
NRC Value
0.65
Coverage %
2.65
